HP ProBook 4310S schematic, Hublot-UMA SI_DDR3

The motherboard schematic for HP ProBook 4310S laptop/notebook Inventec Hublot-UMA Mainboard.
CPU: Penryn
North Bridge: CANTIGA GM47/GL40
South bridge: ICH9-M
OEM: INVENTEC
Title: Hublot_UMA
REV: AX1
Format: PDF
Total Pages: 54
File size: 899KB
Sale Price: 9.5$

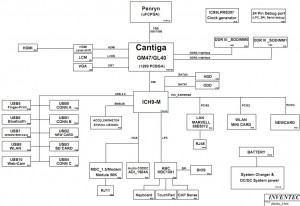

HP ProBook 4310S(Hublot-UMA) Block Diagram:

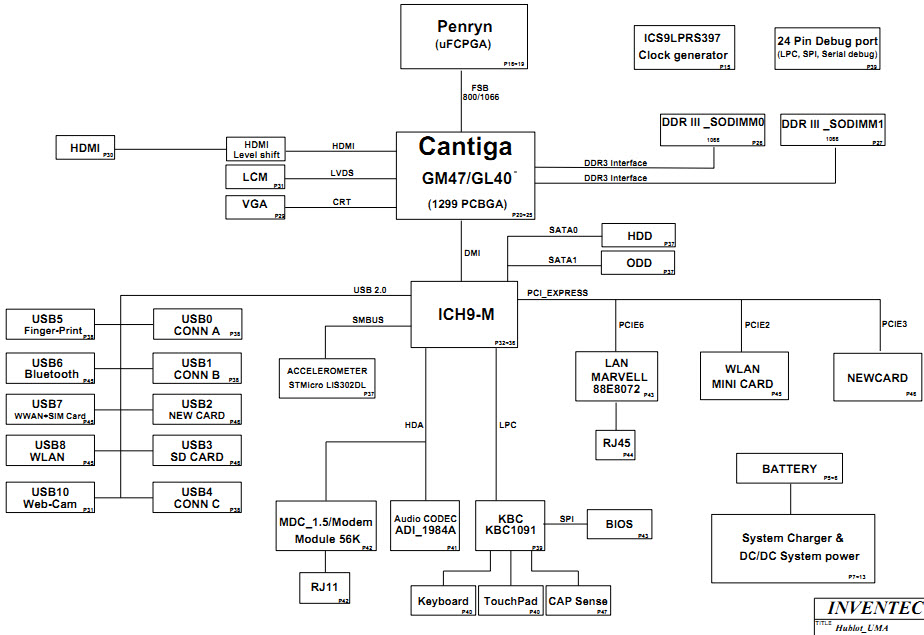

HP ProBook 4310S(Hublot-UMA) Block Diagram

HP ProBook 4310S(Hublot-UMA) Block Diagram
