Lenovo IdeaPad S145-15API Schematic & Boardview LCFC NM-C511 NMC511 GS440 GS540

Schematic (*.pdf), Boardview (*.tvw), BIOS (*.bin) for Lenovo IdeaPad S145-15API, LCFC NM-C511 NMC511 GS440 GS540 Motherboard.
Model: Lenovo IdeaPad S145-15API
Motherboard: NM-C511 NMC511 GS440 GS540
CPU/HUB/RAM: AMD FP5 APU Picasso / DDR4
GPU: UMA
EC: IT8586E-FX
Format: PDF / TVW / BIN
Language: English
Sale Price: 14.5$

Boardview Software

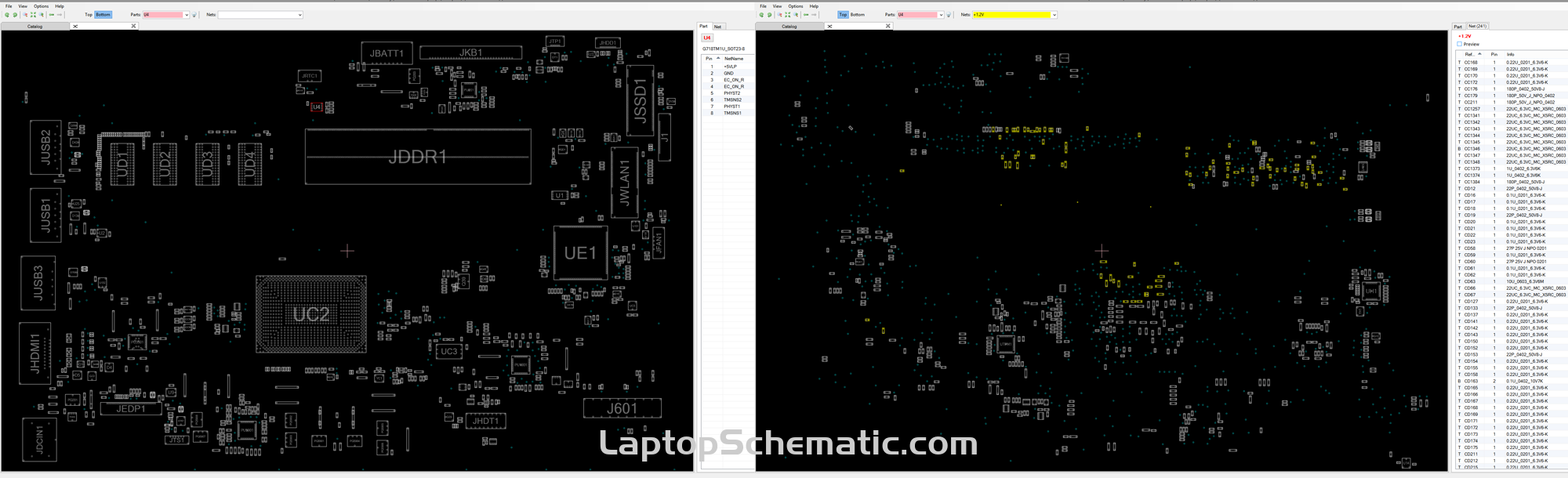

• Open Boardview(.tvw) file with BoardViewer (Download)

What's included:
— Schematic Diagram
— BoardView file

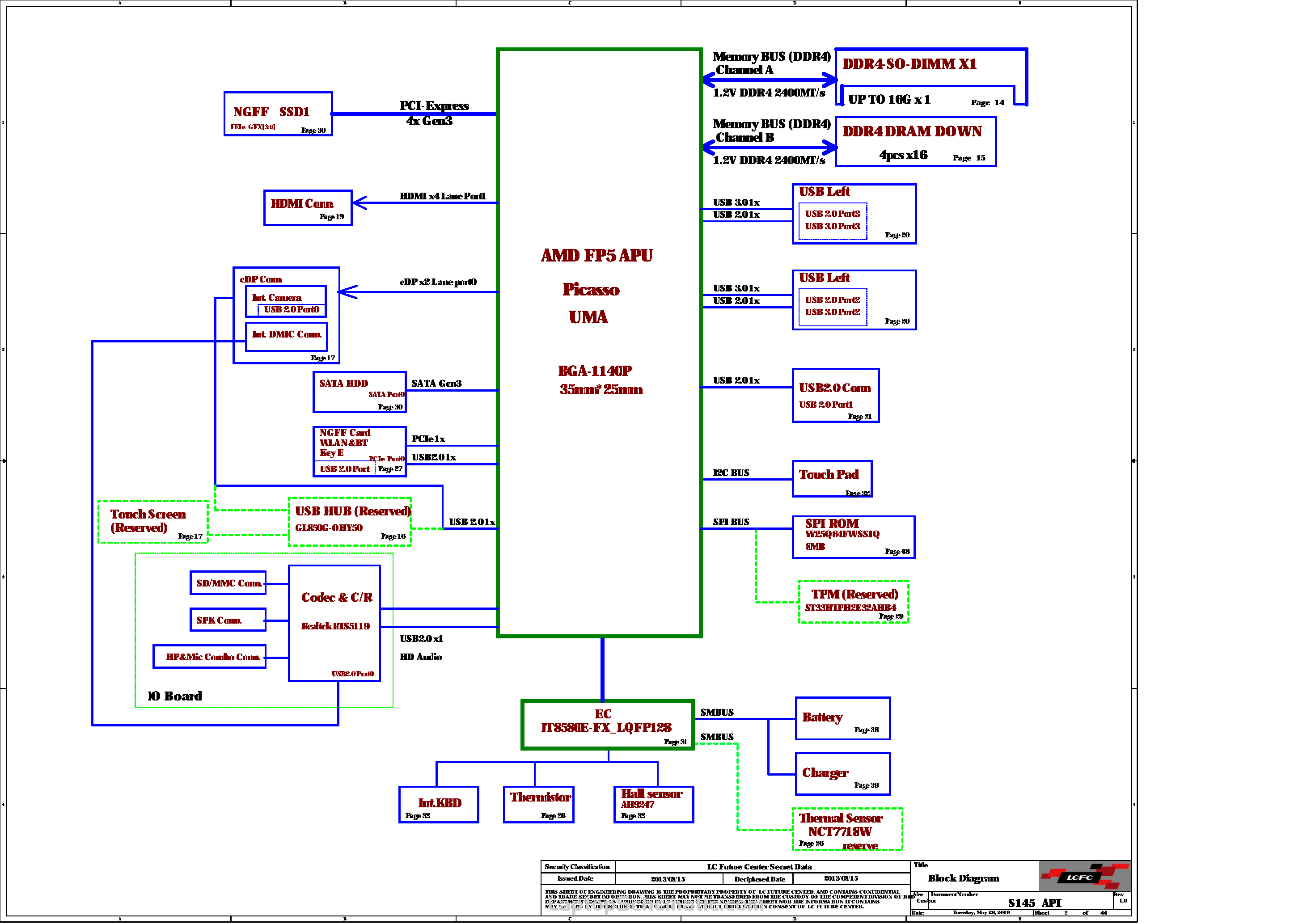

— Power Block Diagram (Power Distribution Diagram / Power Flow Diagram)
— BIOS file
** The BIOS file is untested and offered AS-IS.
