Sony MBX-153 SERVICE MANUAL BOARD REPAIR (include schematic) for VGN-TX Series

The SERVICE MANUAL BOARD REPAIR (include Schematic Diagrams) Sony MBX-153 Main Board for VGN-TX Series : VGN-TX36C,VGN-TX36GP,VGN-TX36SP,VGN-TX37CP,VGN-TX37GP,VGN-TX37LP,VGN-TX37SP,VGN-TX37TP,VGN-TX38CP,VGN-TX3HP,VGN-TX3XP,VGN-TX3XRP,VGN-TX52B,VGN-TX72B,VGN-TX72PZ,VGN-TX850FP,VGN-TX850P,VGN-TX92PS∗,VGN-TX92S∗
CPU: YONAH ULV
North Bridge: GMCH IC300 CALISTOGA-GMS
South Bridge: ICH IC400 ICH7M NH82801GBM
OEM: SONY CORPORATION
DRAWING: MBX-153
Format: PDF
Total Pages: 79

TABLE OF CONTENTS
CHAPTER 1. POWER UP SEQUENCE/BLOCK DIAGRAM
1-1. Power Up Sequence ………………………………………………. 1-1
1-2. Block Diagram……………………………………………………… 1-5
(to 1-5)

CHAPTER 2. DIAGRAMS
Schematic Diagrams and Printed Wired Boards Index ……. 2-1
1. MBX-153 Board …………………………………………………….. 2-2
(to 2-67)
Sale Price: 10.5$

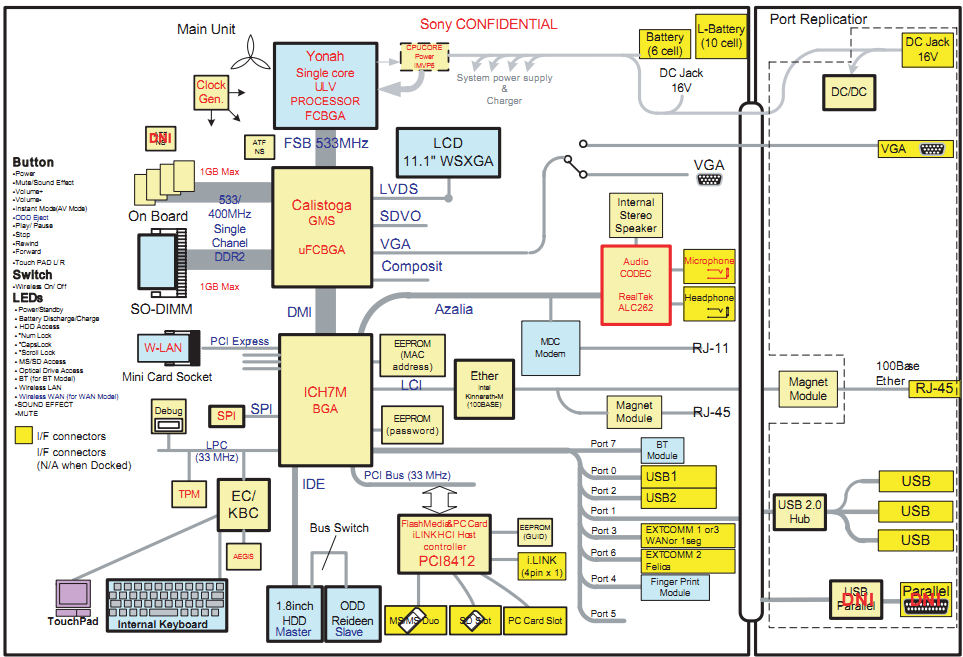

Sony MBX-153 Block Diagram:
