Sony Vaio VPC-EH2N1E/VPC-EH11FX/VPC-EH Series schematic, HK1 MBX-247
The motherboard schematic & Boardview for Sony Vaio VPCEH2N1E, Sony VPCEH11FX, Sony VPCEH Series laptop/notebook, Quanta Huron River Mainboard, 31HK1MB00D0.
CPU: Intel SandyBridge + NVIDIA N12M-GS2/N12P-GV
Chipset: Intel PCH CougarPoint 0.7
OEM: Quanta Computer Inc.
PROJECT: Huron River
Rev: 2A
Format: PDF
Total Pages: 39
File size: 1.01MB
Sale Price: 12.5$(include boaerdview)
Sony Vaio VPC-EH2N1E MBX-247 Block Diagram:

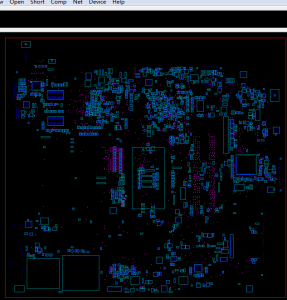

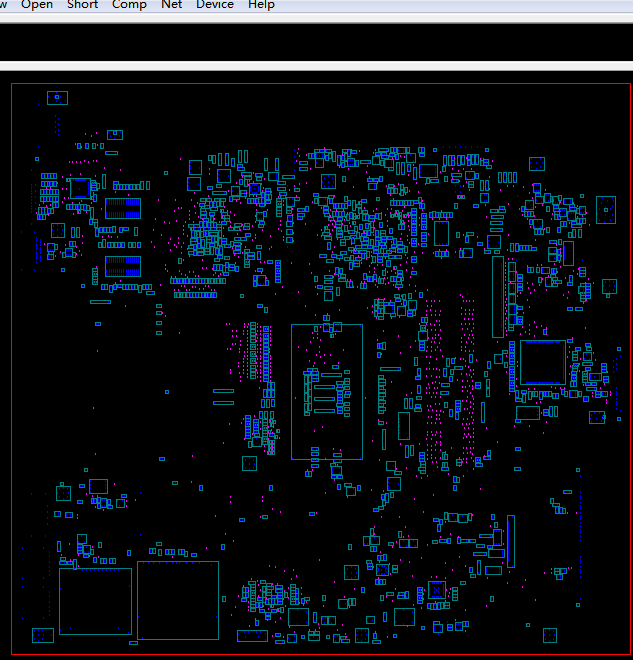

Sony Vaio VPC-EH2N1E MBX-247 Boardview:
