Toshiba Satellite C850/C855/L850/L855 schematic,DK10FG-6050A2491301,CPU 45W

The motherboard schematic for Toshiba Satellite C850, Toshiba Satellite C855, Toshiba Satellite L850, Toshiba Satellite L855 laptop/notebook, Inventec DAKAR10F/FG/R/RG Mainboard, Dakar10F_FG+DK10FG-6050A2491301
CPU: IVY BRIDGE/SANDY BRIDGE (45W)
Discrete VGA AMD W/ POWER EXPRESS THAMES LE THAMES XT SEYMOUR XTX
Chipset: PCH PANTHER POINT COUGAR POINT
OEM: Inventec.
TITLE: DAKAR10F/FG (45W CPU)
DOC.NUMBER: 1310A2491301-0-MTR
Rev: X01
Format: PDF
Total Pages: 70
File size: 1.11MB
Sale Price: 11.5$

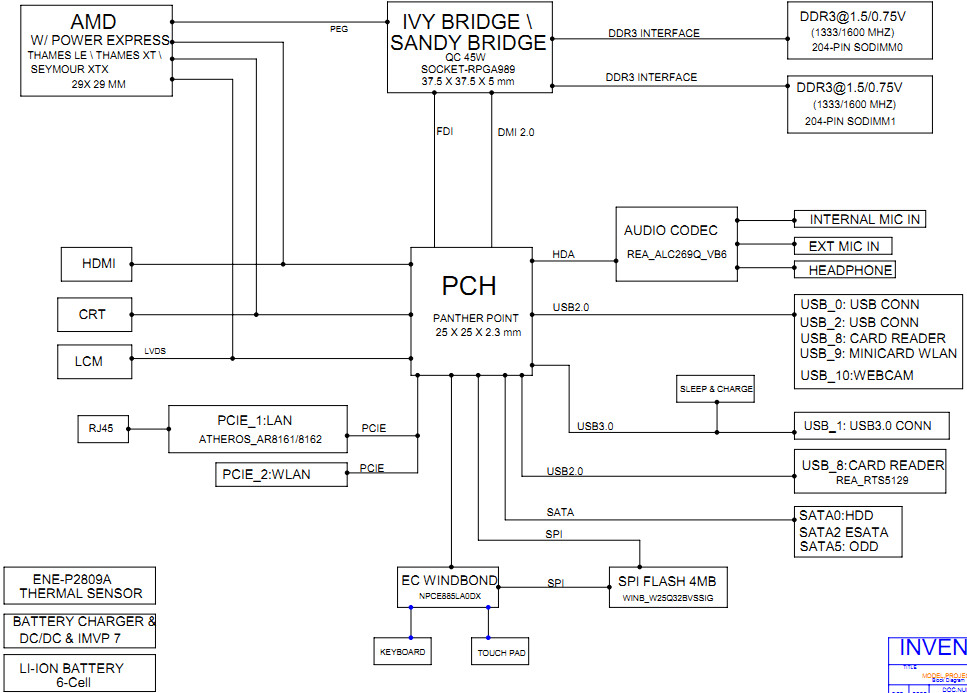

Toshiba Satellite C850 C855 Block Diagram:
