acer Aspire 4743/4743Z schematic, JE43-CP

The motherboard schematic for Acer Aspire 4743, Acer Aspire 4743Z laptop/notebook, Wistron JE43-CP.
CPU: Arrandale
Discrete VGA Nvida N12P-GS/N12P-GV
Chipset: Intel PCH
OEM: Wistron Corporation
Project code: 91.4NI01.001(JE43-CP)
PCB P/N : 91.4NI01.001
REVISION: 10277-1
Document Number: JE43-CP
Rev: -1
Format: PDF
Total Pages: 69
File size: 1.69MB
Sale Price: 11.5$

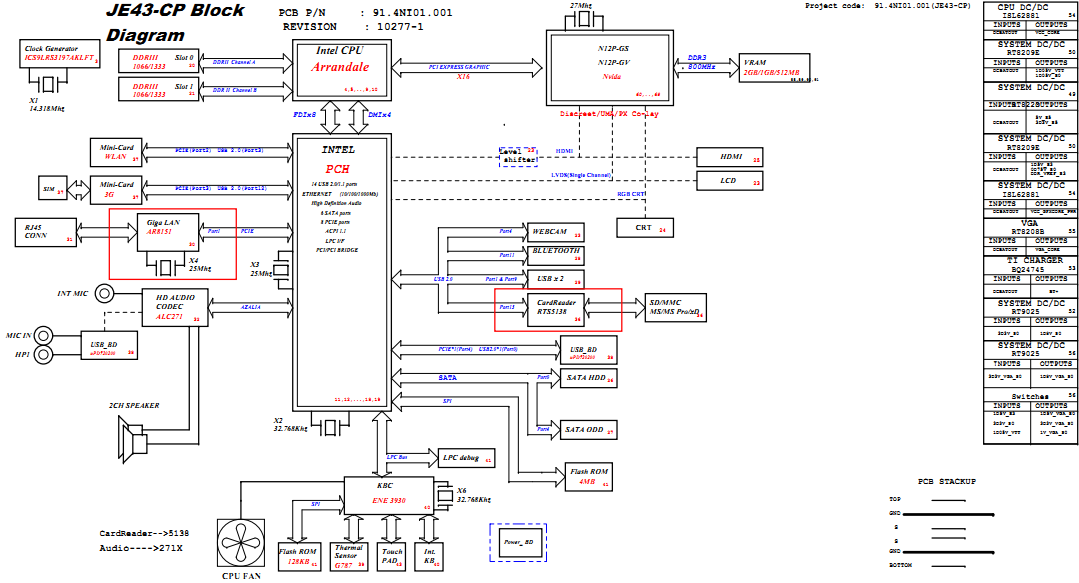

acer Aspire 4743/4743Z Block Diagram:
