acer Aspire 4251/4551, eMachines D440/D640 schematic, JE40-DN

The motherboard schematic for Acer Aspire 4251, Acer Aspire 4551, Acer eMachines D440, Acer eMachines D640 laptop/notebook, Wistron HM42-DN/JE40-DN.
CPU: AMD Champlain S1G4 (45W) + ATI Madison
North Bridge: AMD RS880M
South Bridge: AMD SB820
OEM: Wistron Corporation
Project code: 91.4HD01.001
PCB P/N: 48.4GX01.0SA
PCB Revision: 09919 SA
Document Number: JE40-DN
Rev: -2 & SA
Format: PDF
Total Pages: 63
File size: 1.73MB & 1.71MB
Sale Price: 11.5$ (2 pdf files)

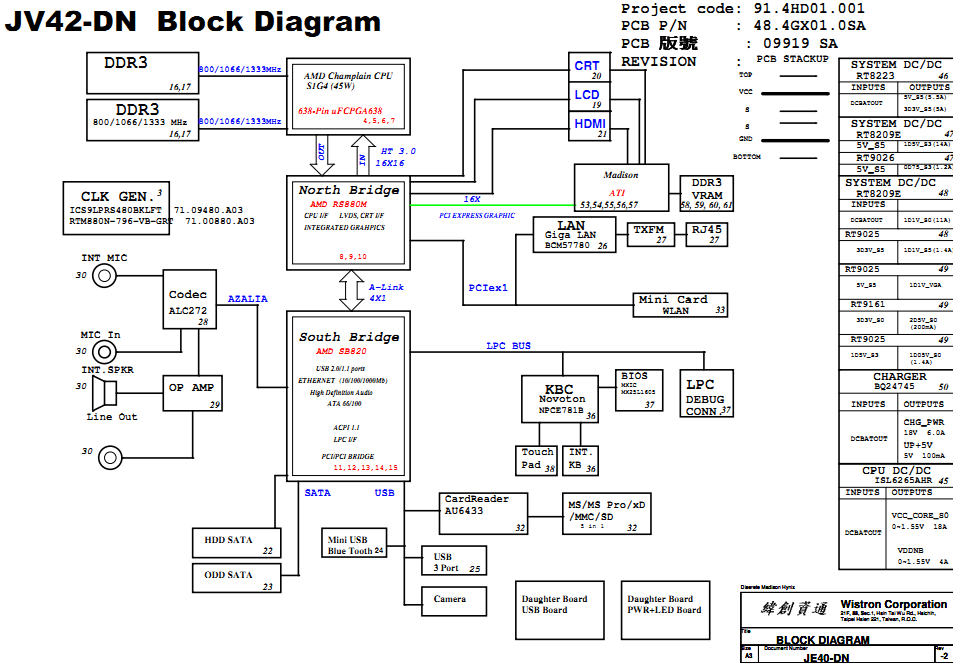

acer Aspire 4251/4551, eMachines D440/D640 Block Diagram:
