Acer Aspire 5742, Gateway NV55C schematic, LA-6582P

The motherboard schematic for :
Acer Aspire 5742 Series: AS5742-6248, AS5742-6475, AS5742-7120, AS5742-7620, AS5742-7645, AS5742-7653, AS5742-7765.
Gateway NV55C Series: NV55C03U, NV55C11U, NV55C14U, NV55C24U, NV55C25U, NV55C35U.
PEW71_81_91 UMA M/B Schematics Document.
CPU: Intel Arrandale (UMA)
Chipset: Intel Ibex Peak-M PCH
OEM: Compal Electronics, Inc.
Model Name: PEW71_81_91 UMA
File Name : LA-6582P
Document Number: PEW71 M/B LA-6582P Schematic
Revision: 1.0
Total Pages: 48
Sale Price: 11.5$

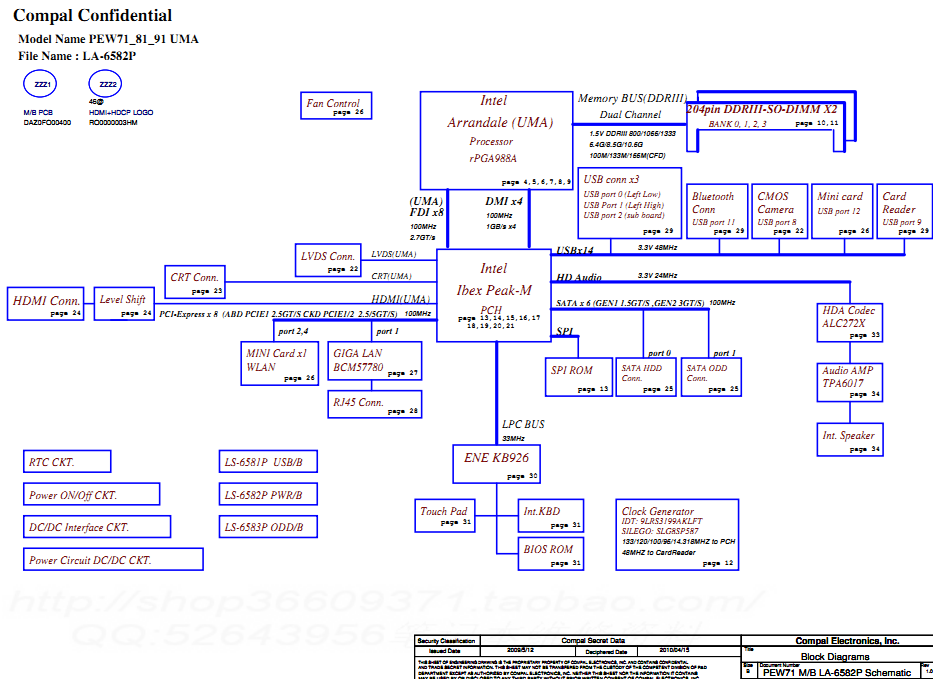

Acer Aspire 5742, Gateway NV55C Block Diagram:
