acer Aspire E1-521 schematic, Q5WT6 LA-8531P

The motherboard schematic for Acer Aspire E1-521 laptop/notebook, EG50_BZ, Q5WT6 Schematics Document.
CPU: AMD Brazos APU + DDR3
Chipset: FCH Hudson-M3L
OEM: Compal Electronics, Inc.
Model Name : Q5WT6
Document Number: LA-8531P
Rev: 0.1
Format: PDF
Total Pages: 37
File size: 1.03MB
Sale Price: 10.5$

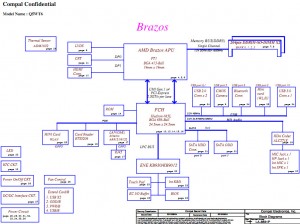

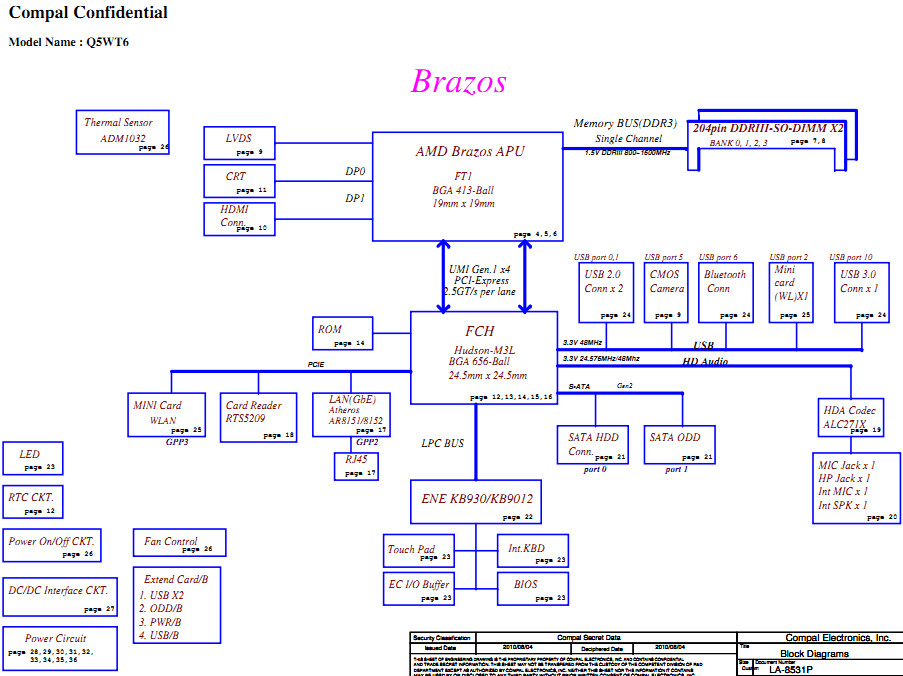

acer Aspire E1-521 Block Diagram:
acer Aspire E1-521 Block Diagram

acer Aspire E1-521 Block Diagram
