acer Aspire R7-572/R7-572G schematic , V5MM2 LA-A021P
The motherboard schematic for Acer Aspire R7-572, Acer Aspire R7-572G laptop/notebook, V5MM2 Mainboard Compal LA-A021P, V5MM2_Ezel_HW M/B Schematics Document
CPU: Intel Haswell ULT + DDR3L
Chipset: Lynx Point – LP PCH
OEM: Compal Electronics, Inc.
Model Name : V5MM2_Ezel_HW
File Name : LA-A021P
Document Number: V5MM2 M/B LA-A021P Schematic
Rev: 1.0
Format: PDF
Total Pages: 57
File size: 1.52MB
Sale Price: 13.5$

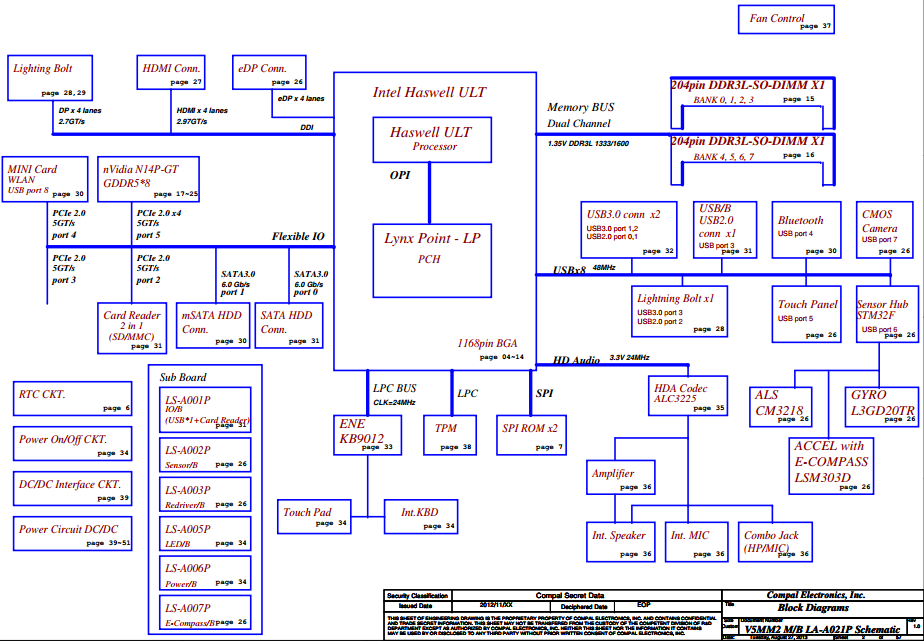

Block Diagram:
