acer Aspire 5742/5742G/5742Z/5742ZG schematics, NEW71/91 LA-5893P

The motherboard schematic for Acer Aspire 5742, Acer Aspire 5742G, Acer Aspire 5742Z, Acer Aspire 5742ZG laptop/notebook, Compal LA-5893P, PEW71/91/54 M/B Schematics Document.
CPU: Intel Arrandale (UMA/DIS)
VGA NV N11P-GV2H/NV N11P-GE
Chipset: Intel Ibex Peak-M PCH
OEM: Compal Electronics, Inc.
Model Name: NEW71/91
File Name: LA5893P
Tiitle: SCHEMATICS,MB A5893
Document Number: 401869
Rev: C
Format: PDF
Total Pages: 56
File size: 1.45MB
Sale Price: 11.5$

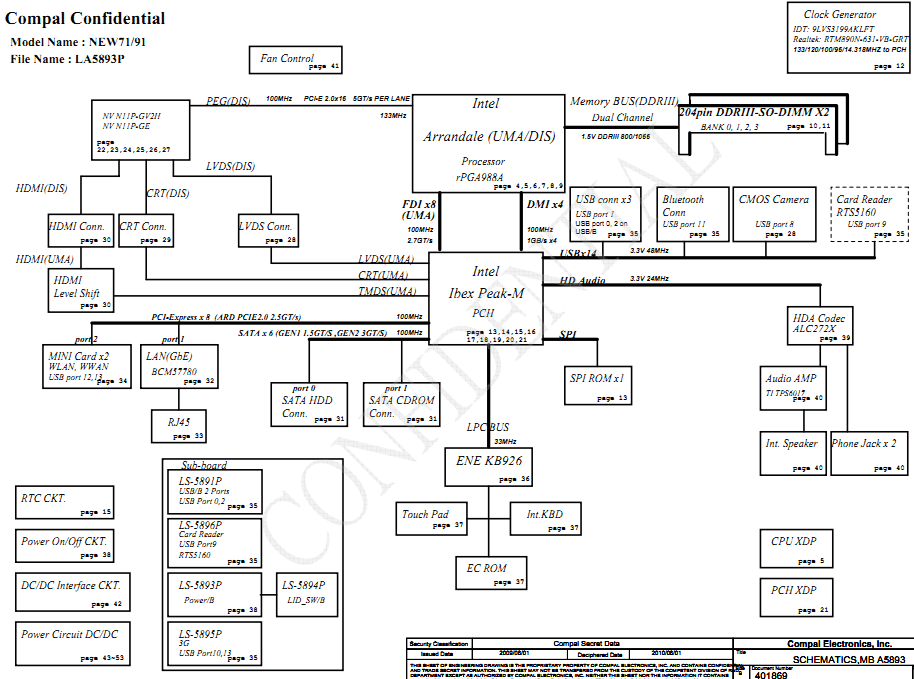

acer Aspire 5742 Block Diagram:
