acer Aspire V3-771 Ultrabook schematic,BA52HR_BA52CR,VA70

The motherboard schematic diagram for Acer Aspire V3-771 Ultrabook, PEGATRON VA70 Ultrabook.
CPU: Sandy Bridge/ Ivy Bridge + DDR-III
dGPU N13P GS/GL/GT
Chipset: PCH Cougar Point Panther Point HM77
OEM: PEGATRON
Project Name: BA52HR/CR
REV: 1.0
Format: PDF
Total Pages: 77
File size: 1.55MB
Sale Price: 11.5$

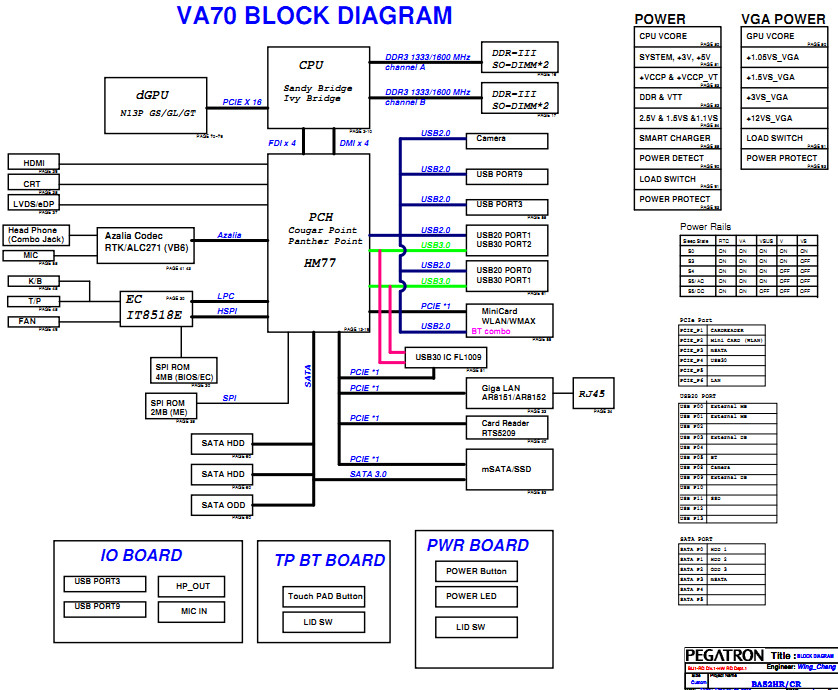

acer Aspire V3-771 Block Diagram:
