Alienware M18x R1 Schematic, PAR10 LA-6571P Motherboard

DELL Schematics

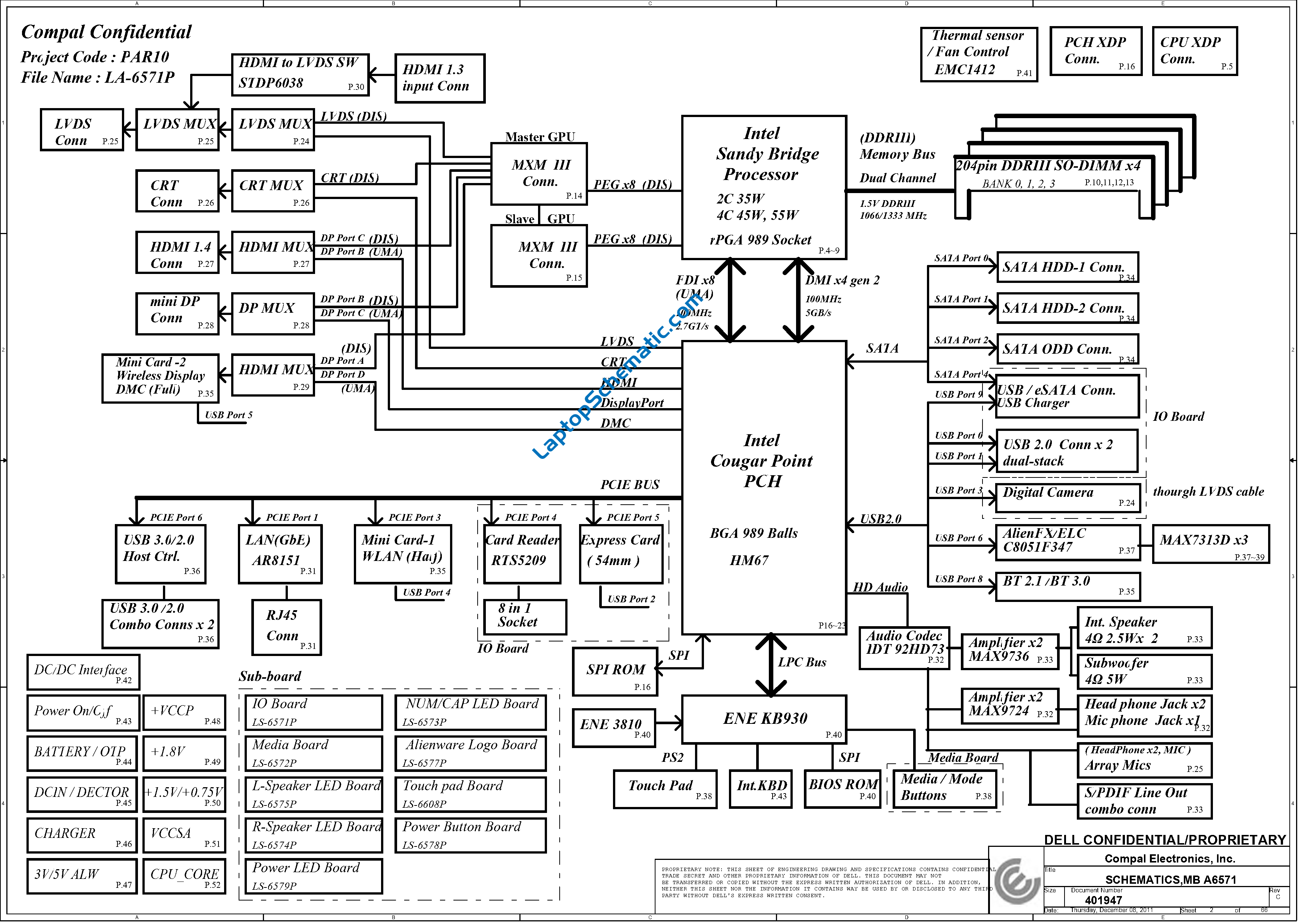

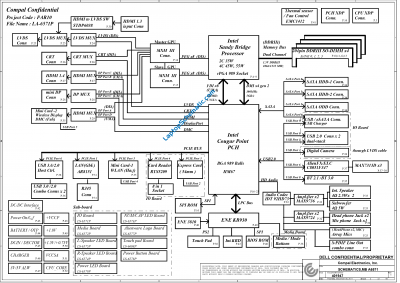

The motherboard schematic diagram for Alienware M18x R1 laptop/notebook, PAR10 LA-6571P Motherboard.
CPU: Intel Sandy Bridge + Cougar Point
GPU: (DIS) 2xMXM III Card
EC: ENE KB930
OEM: Compal
MODEL NAME: PAR10
PCB NO: LA-6571P ( DA80000K510 )
Document Number: 401947
Total Sheet: 66
File size: 1.29MB
Format: PDF (Searchable PDF file, No Watermark)
Language: English
Sale Price: 9.5$

Alienware M18x R1 PAR10 LA-6571P Schematic:
Alienware M18x R1 PAR10 LA-6571P
