Dell Inspiron 15-5559/14-5459/14-3459 (Compal AAL15 LA-D071P) schematic

The motherboard schematic for Dell Inspiron 14 series (Dell Inspiron 14-5459, Dell Inspiron 14-3459) , Dell Inspiron 15 series (Dell Inspiron 15-5559), Dell Inspiron 17-5759 laptop/notebook. Compal AAL15 LA-D071P, SKL-U+MEC1404 VC board.
CPU: Intel SKYLAKE_U
MODEL NAME : AAL15
PCB NO : DA800140000
Document Number: LA-D071P
Total sheet: 64
Sale Price: 12.5$

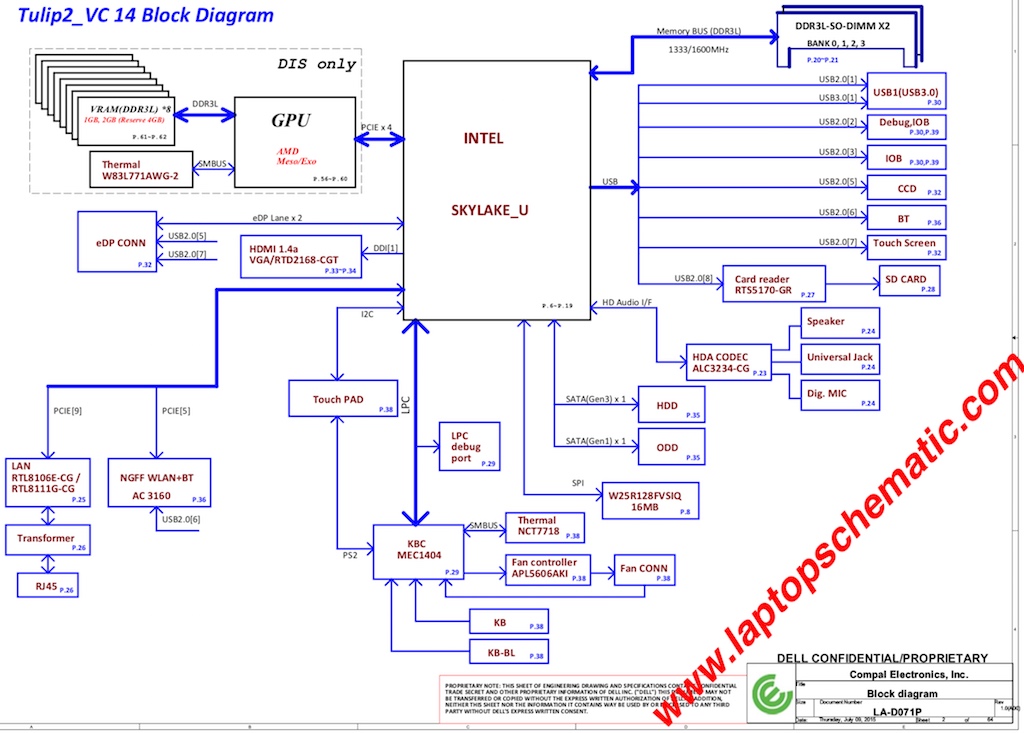

Dell Inspiron 14/15/17 (Compal AAL15 LA-D071P) Block Diagram:
