Dell Inspiron 15 Gaming 7567 Schematic, BBV00/10 LA-D993P

The motherboard schematic for Dell Inspiron 15 Gaming 7567 laptop/notebook, BBV00/10 LA-D993P Motherboard.
CPU: Intel Kabylake-H
MODEL NAME: BBV00/ BBV10
PCB NO: LA-D993P
OEM: Compal
Format: PDF
Sale Price: 13.5$

Dell Inspiron 15 Gaming 7567 LA-D993P Block Diagram:

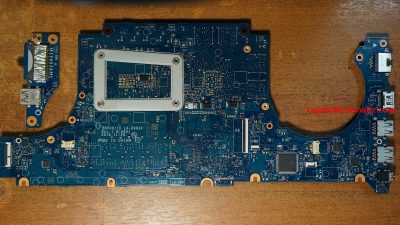

Dell Inspiron 15 Gaming 7567 LA-D993P Motherboard:
