Dell Inspiron M101z schematic, NLM01 LA-6132P

The motherboard schematic for Dell Inspiron M101z netbook , NLM01 Mainboard Compal LA-6132P, M10 Andros, AMD ASB2/ RS880M / SB820M.
CPU: AMD ASB2 K325/2C/1.3G/2M – K125/1C/1.7G/1M
North Bridge: AMD-RS880M
South Bridge: AMD-SB820M
OEM: Compal Electronics, Inc.
MODEL NAME : NLM01
PCB NO : LA-6132P ( DA80000I500) DAZ0DD00200
BOM P/N :
43185331L01 (K325)
43185331L02 (K125)
43185331L03 (V105)
Document Number: LA-6132P
Rev: 1.0
Format: PDF
Total Pages: 45
File size: 1.25MB
Sale Price: 11.5$

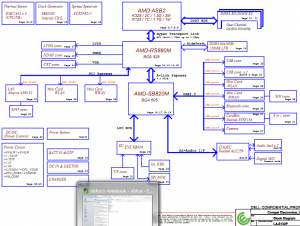

Dell Inspiron M101z Block Diagram:
