Dell Latitude 5175 5179 Schematic & Boardview, AAJA0 LA-C791P Motherboard Schematics

The motherboard schematic and Boardview (.brd Allegro) for Dell Latitude 5175 2-in-1, Dell Latitude 5179 2-in-1 laptop/notebook, AAJA0 LA-C791P Motherboard.
CPU/RAM: Intel SkyLake-Y LPDDR3
GPU: Integrated (UMA)
EC: SMSC MEC1641
MODEL NAME: LA-C791P
PCB NO: DAA000AS000
OEM: Compal
Document Number: LA-C791P
Format: PDF, BRD Allegro (Open with Allegro Free Physical Viewer)
Searchable PDF file, No watermark of website
Total Sheet: 66
Language: English
Sale Price: 16.5$ (include Boardview)

Dell Latitude 5175 5179 AAJA0 LA-C791P Schematic:

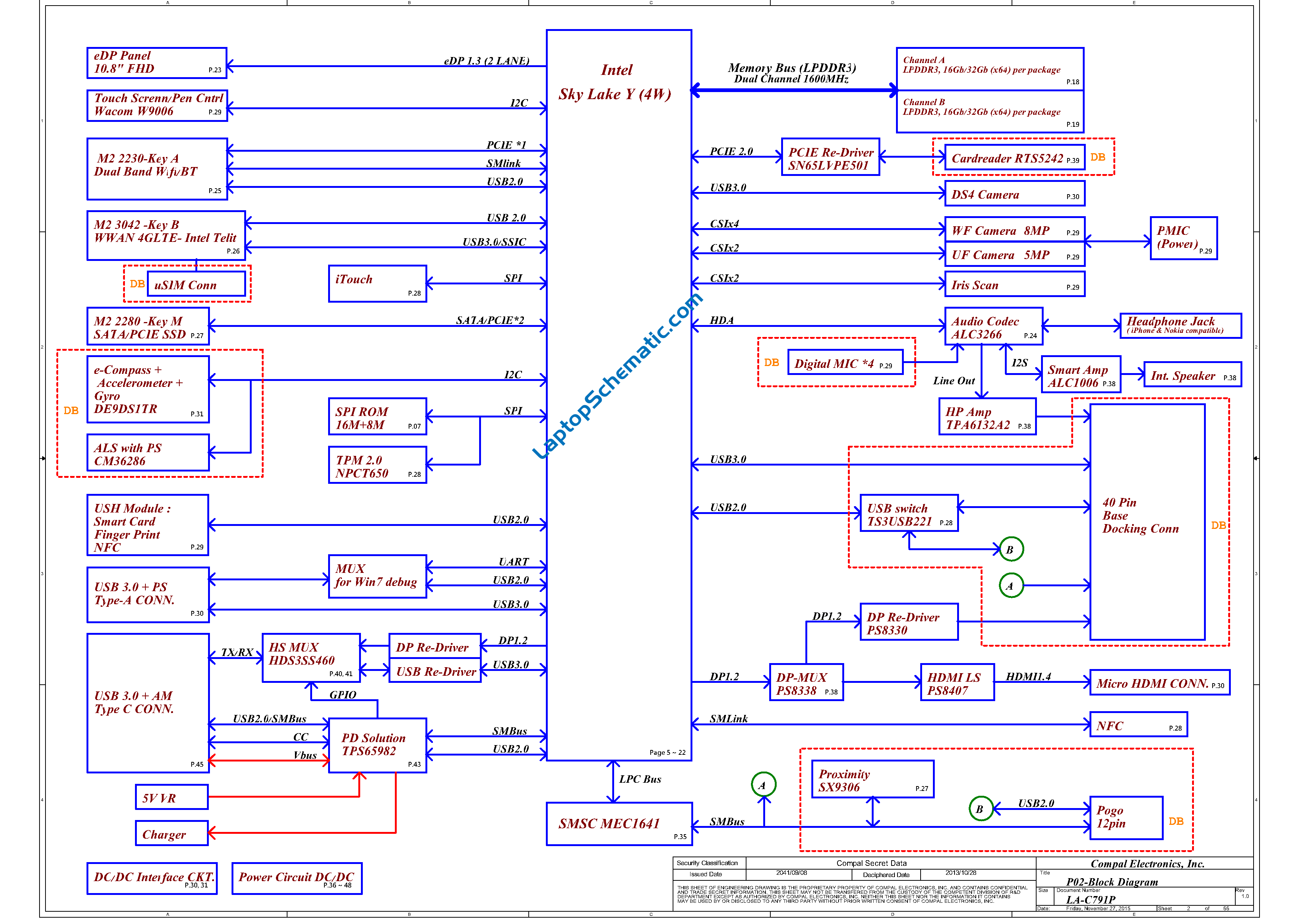

Dell Latitude 5175 5179 AAJA0 LA-C791P Schematic

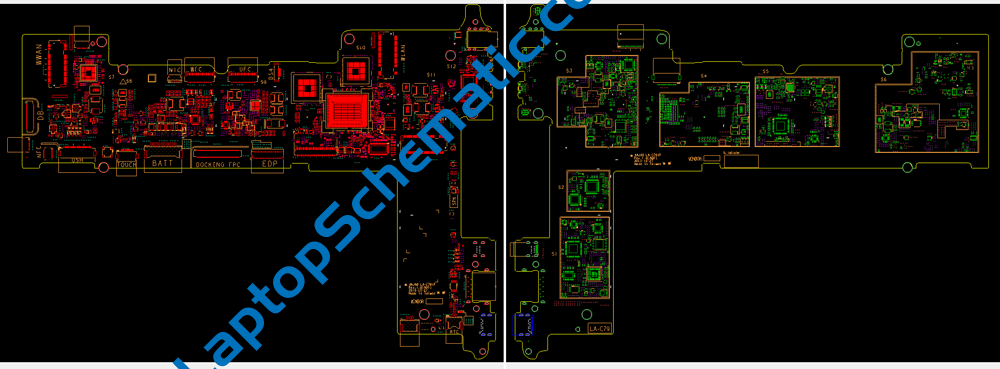

Dell Latitude 5175 5179 AAJA0 LA-C791P Boardview:
