Dell Latitude E5410/E5510 schematic & boardview, DF3-14D 09281

The schematic diagram and Boardview(.brd) for Dell Latitude E5410, Dell Latitude E5510 notebook/laptop, Wistron Fonseca 14.1″ DIS Schematics Document.
CPU: Intel Mobile Arrandale
Discrete VGA ATI M92LP-S2
Chipset: Intel PCH Ibex Peak-M
OEM: Wistron Corporation
Project name: DF3-14D
Project code: 91.4GQ01.001
PCB P/N : 91.4GQ01.0SB
Revision : 09281 – SB
Document Number: Fonseca 14.1″ DIS
Rev: X01
Format: PDF
Total Pages: 92
File size: 3.81MB
Sale Price: 11.5$ (include boardview)

Dell Latitude E5410/E5510 Block Diagram:

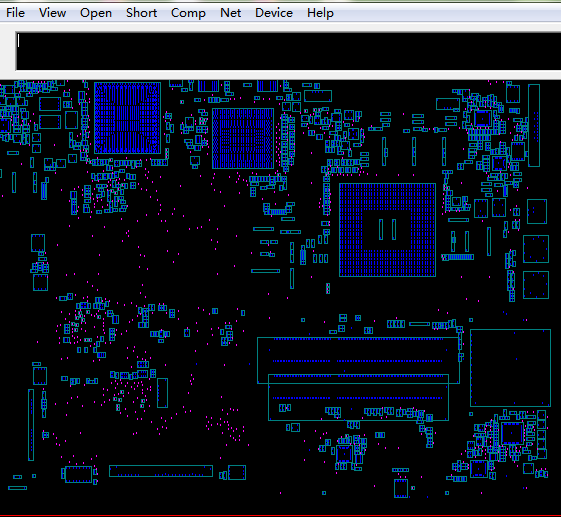

Dell Latitude E5410/E5510 boardview:
