Fujitsu LifeBook P3010 schematic & boardview, Quanta JR6

The motherboard schematic and boardview(.brd) for Fujitsu LifeBook P3010 laptop/notebook, Quanta JR6 Mainboard.
CPU: AMD Lion Sabie Congo
North Bridge: RS780MN
South Bridge: SB710
OEM: Quanta Computer Inc.
Document Number: JR6
Rev: 1A
Format: PDF
Total Pages: 29
File size: 1.00MB
Sale Price: 11.5$ (include boardview)

Fujitsu LifeBook P3010 Block Diagram:

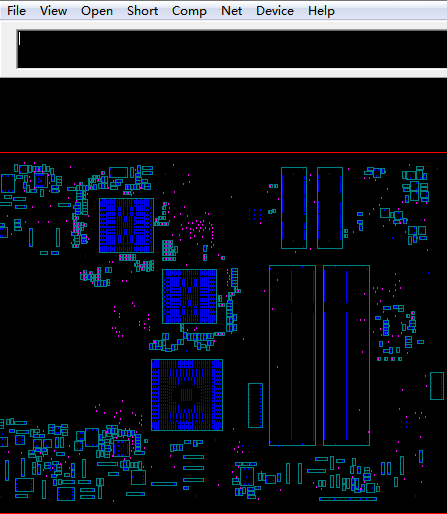

Fujitsu LifeBook P3010 boardview:
