Toshiba Satellite L500/L550 schematic, KSWAA/KTWAA LA-4982P

The motherboard schematic for Toshiba Satellite L500, Toshiba Satellite L550 laptop/notebook, KSWAA/KTWAA Mainboard Compal LA-4982P.
CPU: Intel Penryn
North Bridge: Intel Cantiga GM45/PM45/GL40 GM47/GM49 + VGA MXM/B ATI M92XT,64bit with 128M/256MB ATI M96,128bit with 256M/512MB
South Bridge: Intel ICH9-M
OEM: Compal Electronics, Inc.
Model Name: KSWAA/KTWAA
File Name : LA-4981P
TITLE: SCHEMATIC MB A4982
Document Number: 401791
REV: B
Format: PDF
Total pages: 45
File size: 647KB
Sale Price: 10.5$

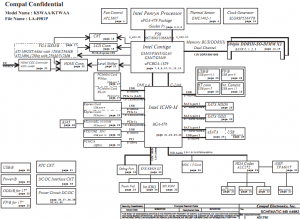

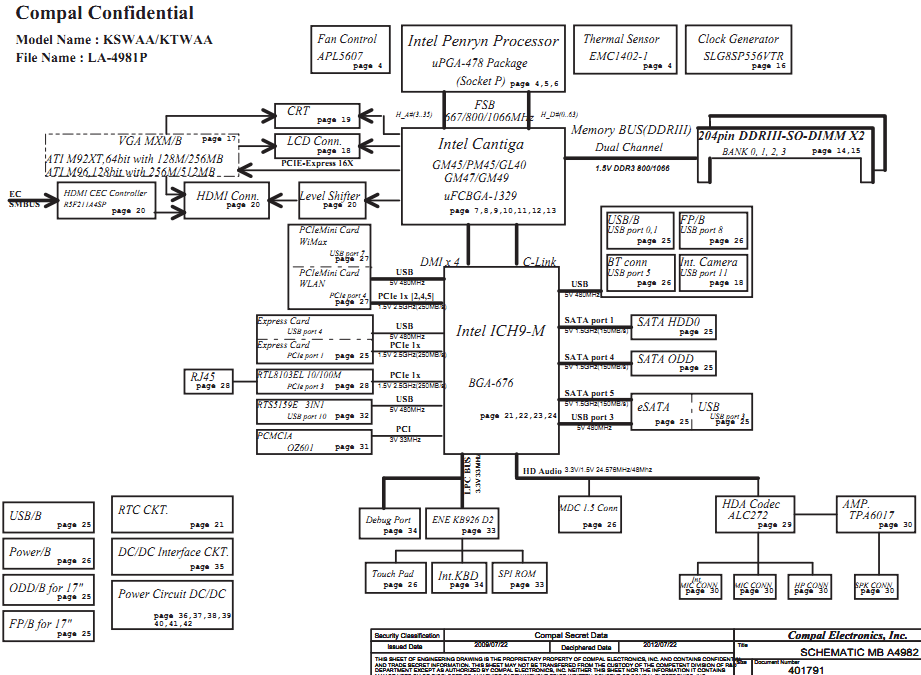

Toshiba Satellite L500 L550(LA-4982P) Block Diagram:
