Fujitsu Siemens Esprimo V5535/V5515 schematic, Z17M

The schematic diagram and Boardview(.bdv file) for Fujitsu Siemens Esprimo Mobile V5535, Fujitsu Siemens Esprimo Mobile V5515 laptop/notebook, Inventec Z17M.
CPU: Intel Yonath
Chipset: SiS M672 + SiS 968
Board name: Mother Board Schematic
Version: 01
Project : xxxx (FSC_v5535)
Initial Date : April ,7 , 2007
OEM: Inventec Corporation
Rev: A02
Format: PDF
Total Pages: 31
Price: $12.5 (include boardview)

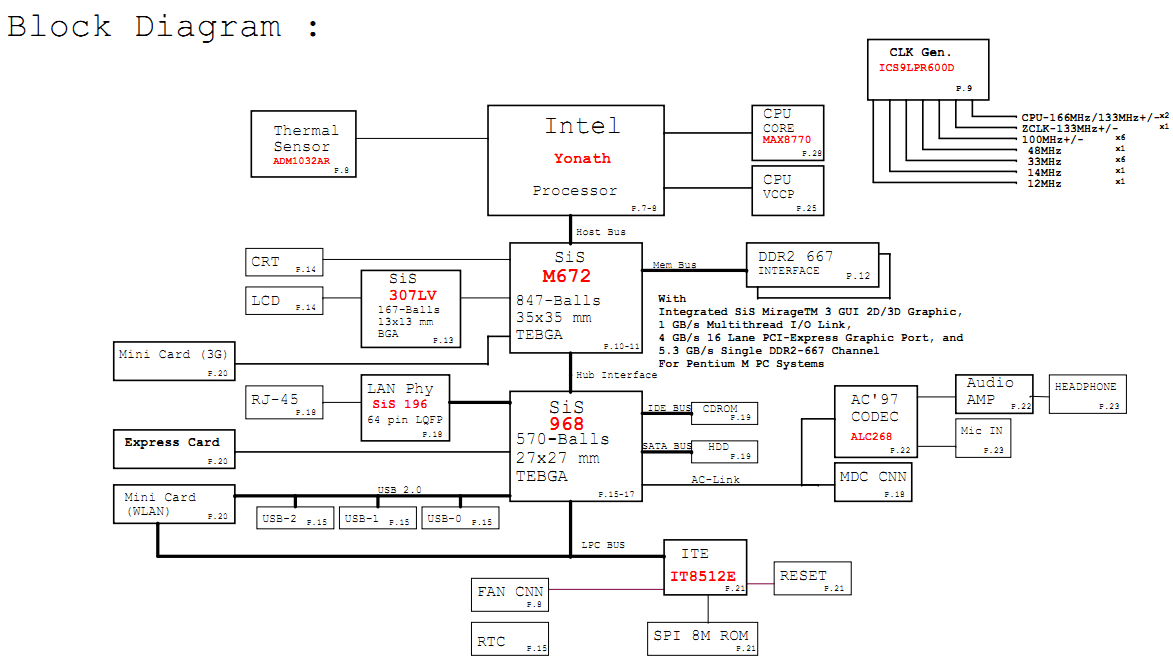

Fujitsu Siemens Esprimo Mobile V5535 V5515 Block Diagram:

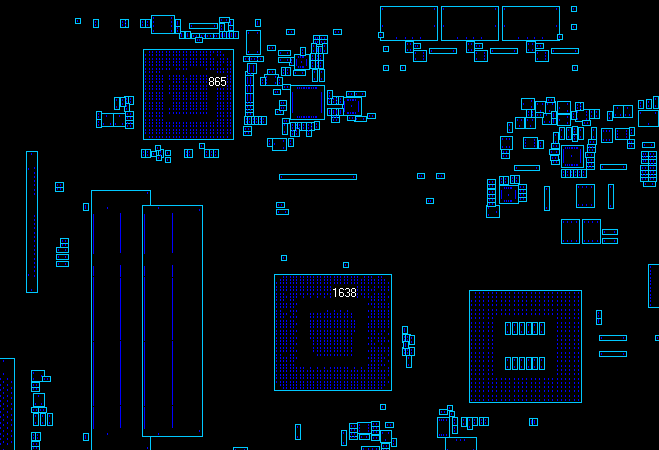

Fujitsu Siemens Esprimo Mobile V5535 V5515 Boardview:
