Fujitsu Siemens LifeBook S7220 schematic & boardview, Quanta FJ3

The motherboard schematic and boardview(.brd) for Fujitsu Siemens Lifebook S7220 laptop/notebook, Quanta FJ3 Mainboard.
CPU: Penryn
North Bridge: CANTIGA
South Bridge: ICH9M
OEM: Quanta Computer Inc.
Document Number: FJ3 Mainboard
Rev: 1A
Format: PDF
Total Pages: 44
File size: 1.25MB & 270KB(boardview)
Sale Price: 10.5$(include boardview)

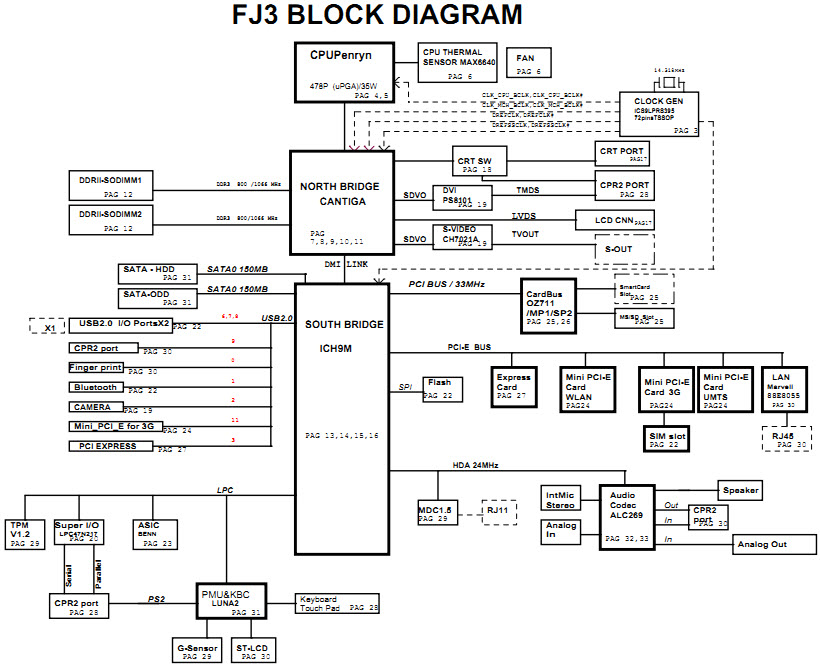

Fujitsu Siemens LifeBook S7220 Block Diagram:

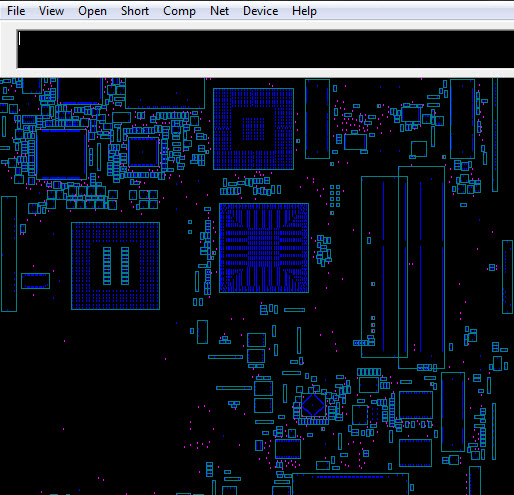

Fujitsu Siemens LifeBook S7220 boardview:
