Gateway M285/CX2720/CX2724/CX2735M schematic, Quanta TA6

The motherboard schematic for Gateway TA6 Motherboard: Gateway M285, Gateway CX210X, Gateway CX2720, Gateway CX2724, Gateway CX2735M Laptop.
CPU: Yonah/Merom
North Bridge: Calistoga + ATI M54P
South Bridge: ICH-7M
OEM: Quanta Computer Inc.
PROJECT: TA6
Format: PDF
Total Pages: 43
Sale Price: 12.5$

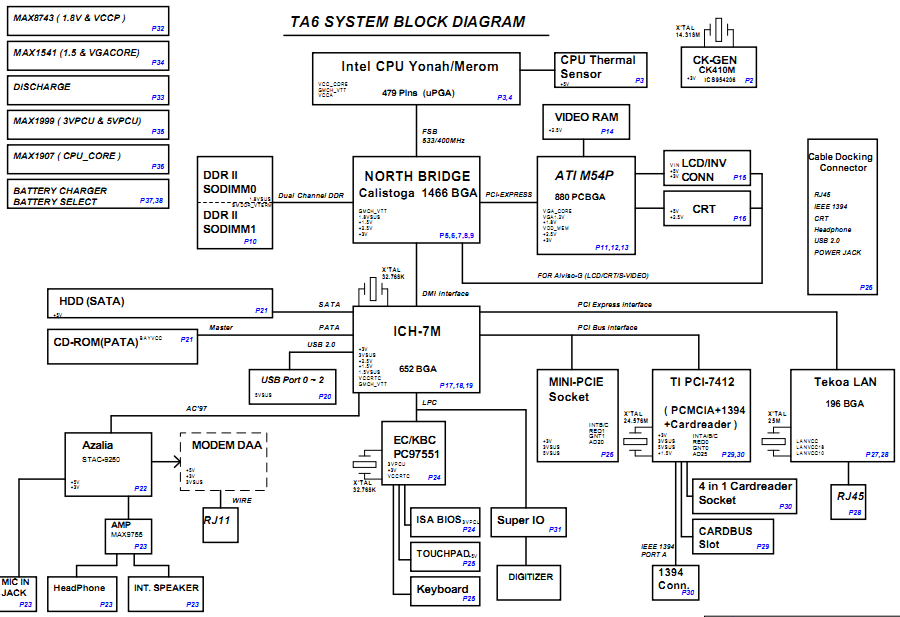

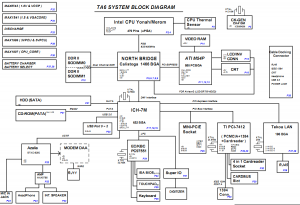

Gateway M285/CX2720/CX2724/CX2735M Block Diagram:
