HP Probook 4525s (UMA) schematic & Boardview, 09287-1, Patek

The motherboard schematic and Boardview(.brd) for HP Probook 4525s (UMA) laptop/notebook, Wistron Patek Mainboard.
CPU: AMD Champlain S1G4
North Bridge: AMD RS8800M/RX881
South Bridge: AMD SB820M
OEM: Wistron Corporation
Document Number: PATEK
Rev: -1
Format: PDF
Total Pages: 50
File size: 1.30MB
Sale Price: 11.5$ (include Boardview)

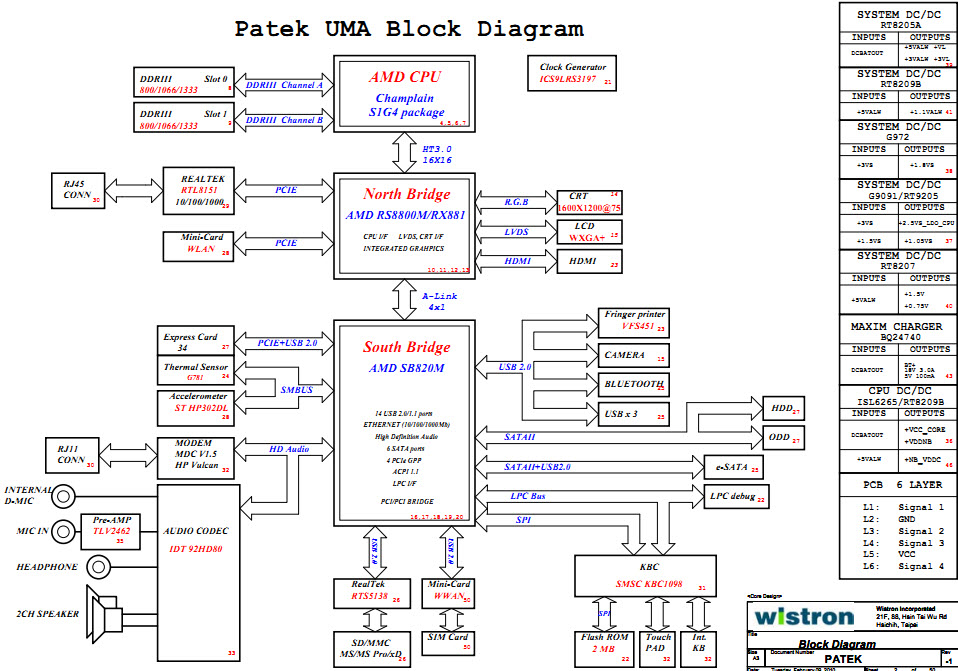

HP Probook 4525s (UMA) Block Diagram:

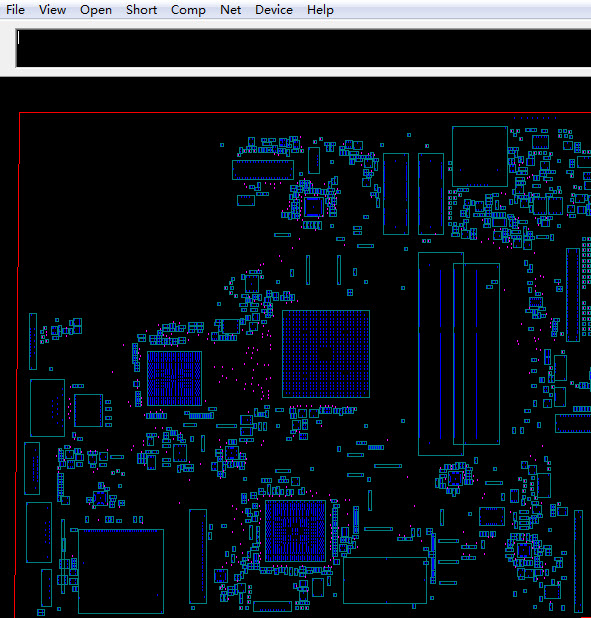

HP Probook 4525s (UMA) Boardview:
