Lenovo ThinkPad E590 Schematic & Boardview NM-B911

The motherboard schematic and Boardview (.pdf) for Lenovo Thinkpad E590 Laptop, LCFC NM-B911 E490S E490 R490 E590 R590 Motherboard.
CPU/HUB/RAM: Intel Whiskeylake-U/ DDR4
GPU/VRAM: UMA or DIS (AMD R17M-P1-50 / R17M-P1-70)
EC/KBC/SIO: ITE IT8227E-256/BX
Document Number: EE490/590 NM-B911
OEM: LCFC
Format: PDF
Searchable PDF file, No watermark of website
Language: English
Total Sheets: 99
Sale Price: 12.5$ (include PDF Boardview)

Also included:

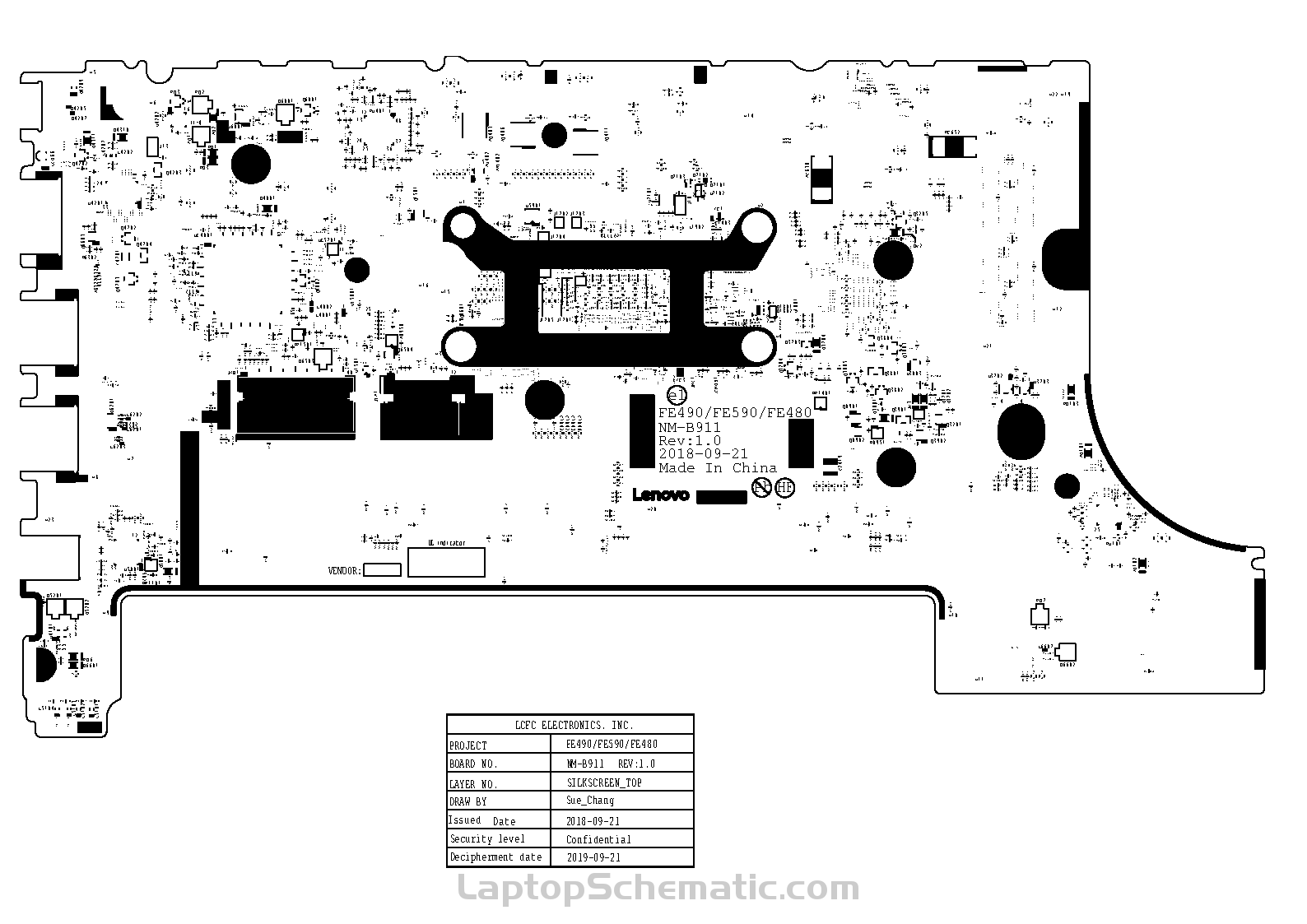

— BoardView* (* Silkscreen / Searchable PDF file, not a .BRD file)
— Power Tree Diagram (Power Distribution Diagram)
— Power Block Diagram
