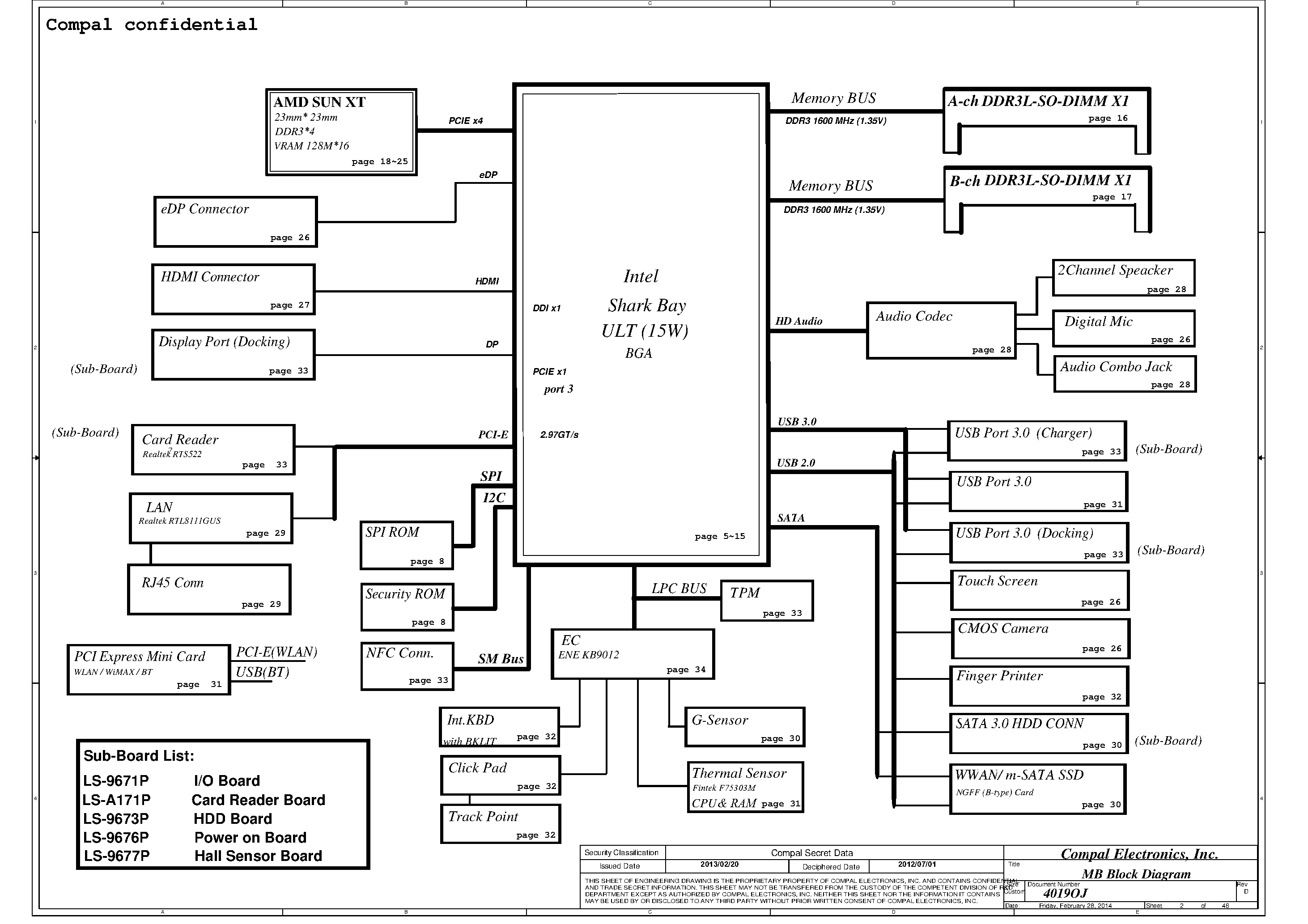

Lenovo ThinkPad S5-S540 LA-A171P VIUS6 Schematic

The Schematic (*.PDF) for Lenovo ThinkPad S5-S540 laptop, Compal LA-A171P VIUS6 Motherboard. Intel Shark Bay ULT Processor with DDR3L + AMD SUN XT S3 GPU.

Model Name: VIUS6
File Name: LA-A171P
CPU: Intel Shark Bay ULT Processor with DDR3L
GPU: AMD SUN XT S3 GPU
EC: ENE KB9012
File type: PDF (Searchable)
Pages: 46
Language: English

Also included :
— Power Sequence Timing diagram (AC and DC modes)

Original document, no irrelevant watermark.

Sale Price: 12.5$
