Lenovo Thinkpad E480 E580 Schematic NM-B421

The motherboard schematic for Lenovo Thinkpad E480 E580 NM-B421 DIS laptop/notebook, NM-B421 Schematic, Intel KabyLake Processor with DDR4+PCH, AMD RI7M-PI 50/70.
CPU: Intel KabyLake
PCB: NM-B421
Document Number: EE480/580 NM-B421
OEM: LCFC
Format: PDF
Sale Price: 12.5$

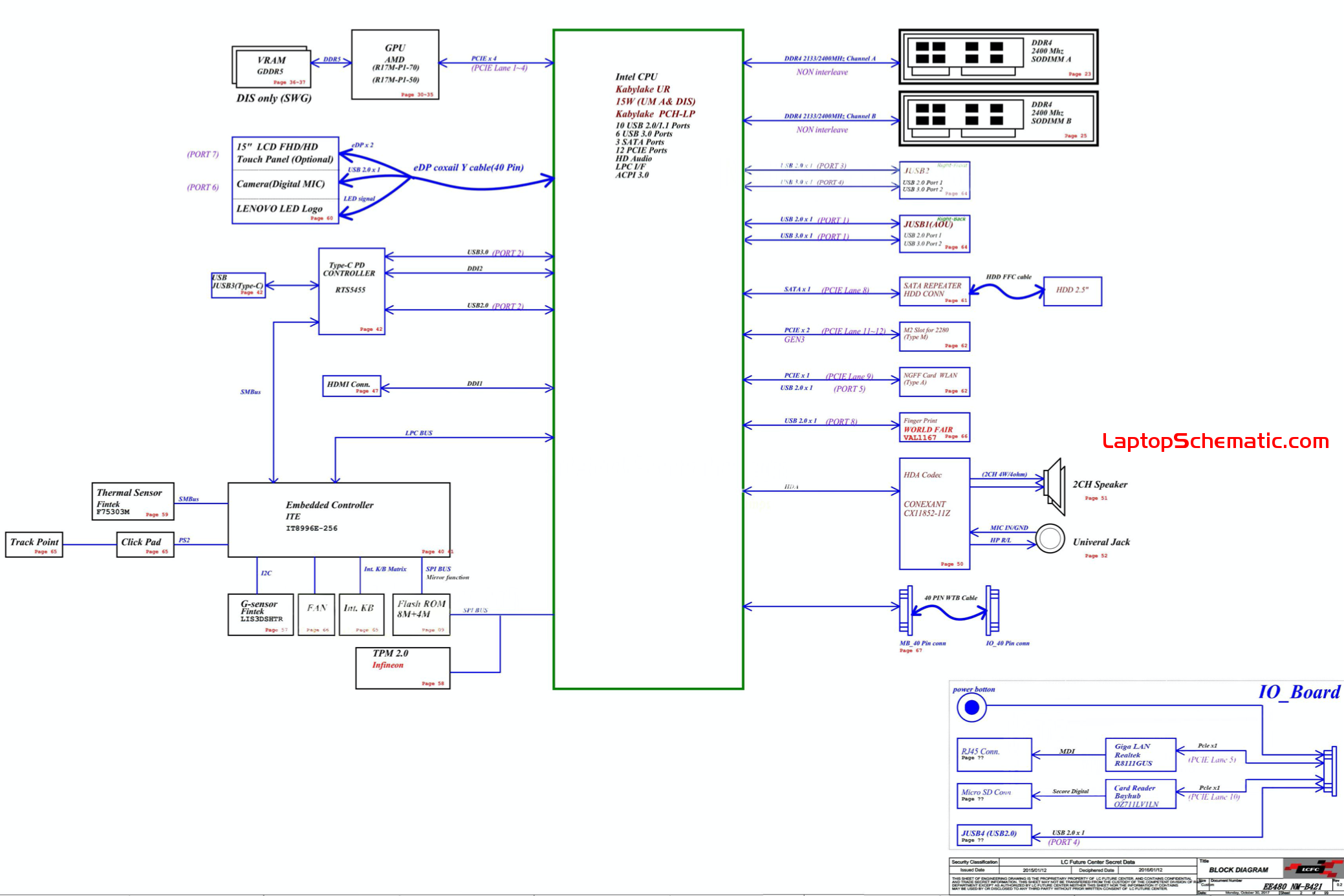

Lenovo Thinkpad E480 E580 NM-B421 Block Diagram:

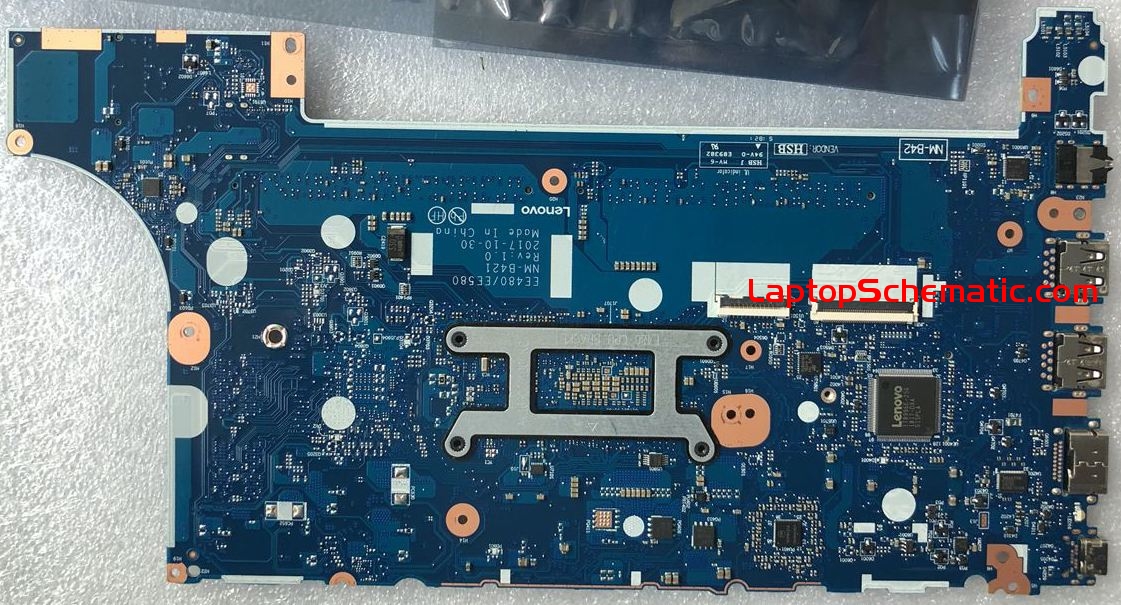

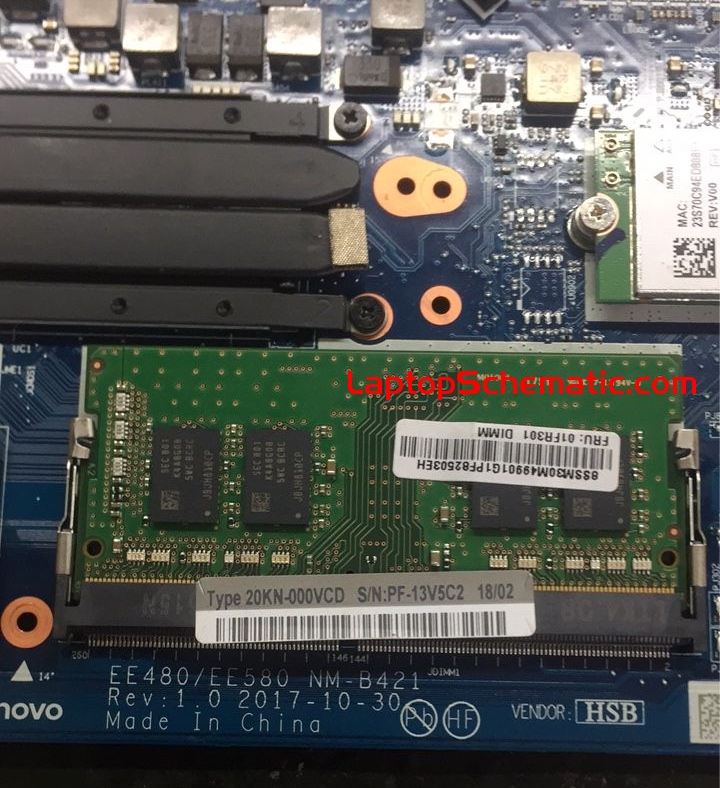

Lenovo Thinkpad E480 E580 NM-B421 Motherboard:
