Lenovo ThinkPad X201 schematic, Mocha-3

The schematic diagram for Lenovo ThinkPad X201 laptop/notebook, Wistron Mocha-3.
CPU: Intel Arrandale
Chipset: Intel PCH IBEX PEAK
OEM: Wistron Corporation
Mocha-3
08270-2 SOVP
January 27th 2010
Document Number: Mocha-3
Rev: -2
Format: PDF
Total Pages: 70
File Size: 1.57MB
Sale Price: 11.5$

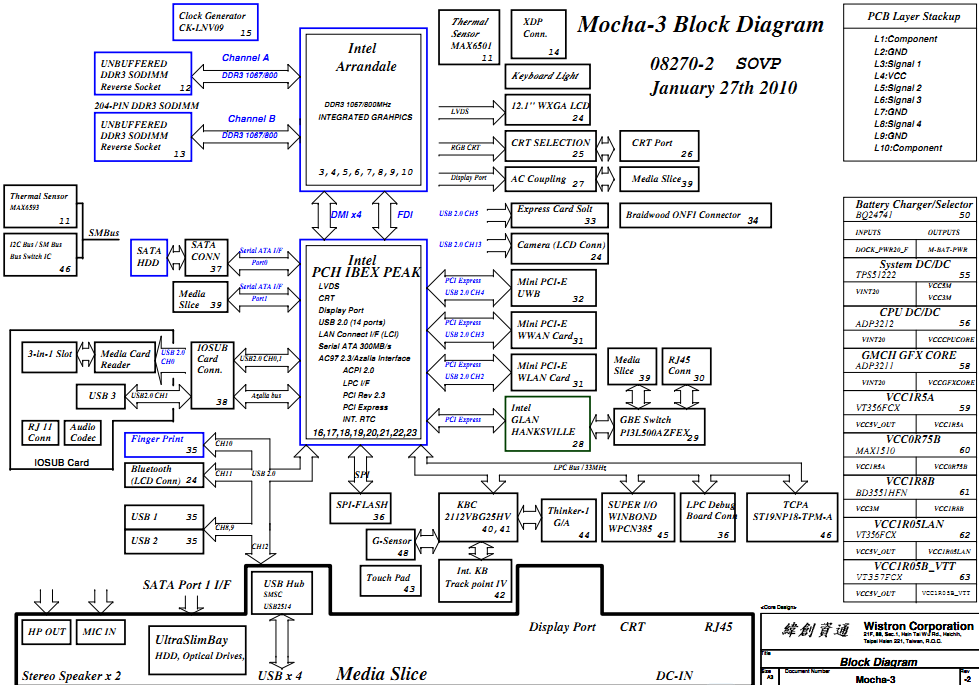

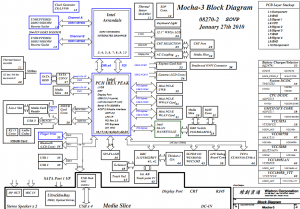

Lenovo ThinkPad X201 Block Diagram:

Lenovo ThinkPad X201 Block Diagram
