Sony M721 Mainboard Schematic Diagrams

The schematic diagram for Sony M721 Mainboard, fit SONY VAIO VGN-NR Series notebook/laptop.
CPU: Merom
North Bridge: Crestline 965GM
South Bridge: ICH8-M
OEM: FOXCONN
Document Number: M721-1-01
Rev: 0.2
M/B P/N:
1P-0079100-6010(FUBAI)
1P-0079500-6010(HANSTAR)
1P-0079G00-6010(TRIPOD)
P/B P/N:
1P-1079100-6010(FUBAI)
1P-1079500-6010(HANSTAR)
1P-1079G00-6010(TRIPOD)
U/B P/N:
1P-1079101-6010(FUBAI)
1P-1079501-6010(HANSTAR)
1P-1079G01-6010(TRIPOD)
Format: PDF
Total Pages: 56
File size: 1.24MB
Sale Price: 11.5$

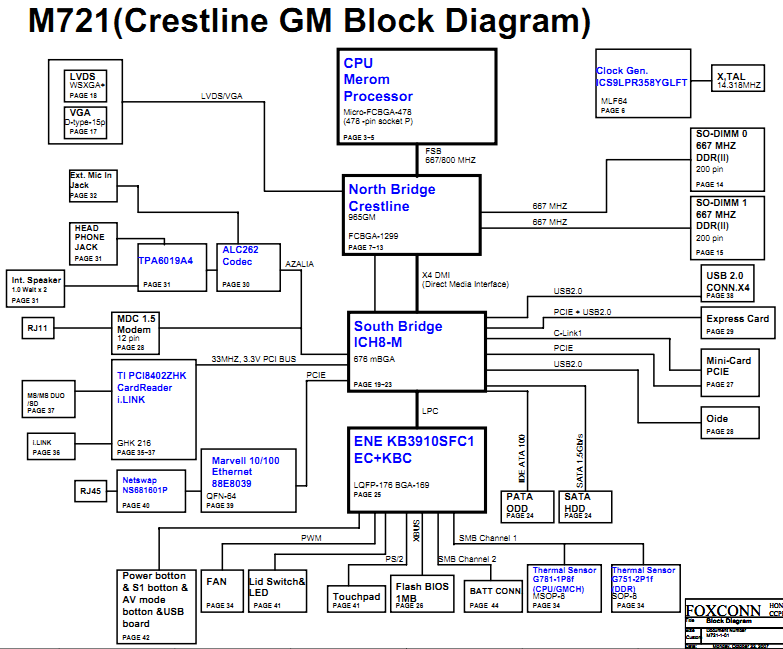

Sony M721 Mainboard Block Diagram:
