Lenovo K46 (Discrete) schematic, QUANTA LL3A

The motherboard schematic and boardview for Lenovo K46 (Discrete), Quanta LL3A Intel Calpella Discrete.
CPU: Auburndale /Arrandale
Discrete VGA Nvidia NV10N
Chipset: PCH Ibex Peak-M Intel(R) 5 Series Express Chipset
OEM: QUANTA COMPUTERL
PROJECT: LL3A
Rev: 1C
Format: PDF
Total Pages: 47
File size: 1.30MB
Sale Price: 12.5$ (include boardview)

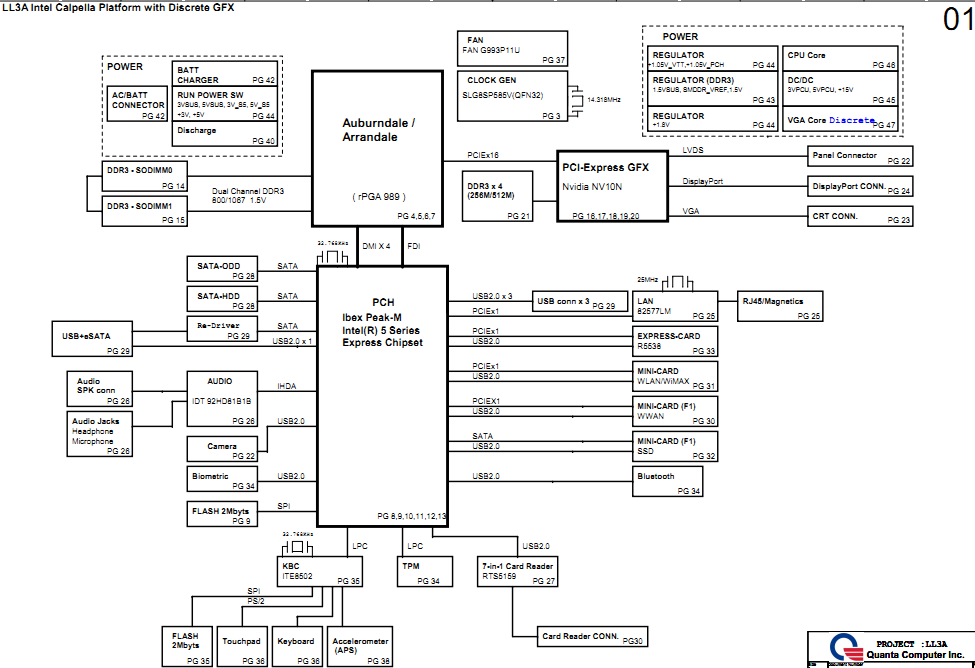

Lenovo K46 (Discrete) Block Diagram:

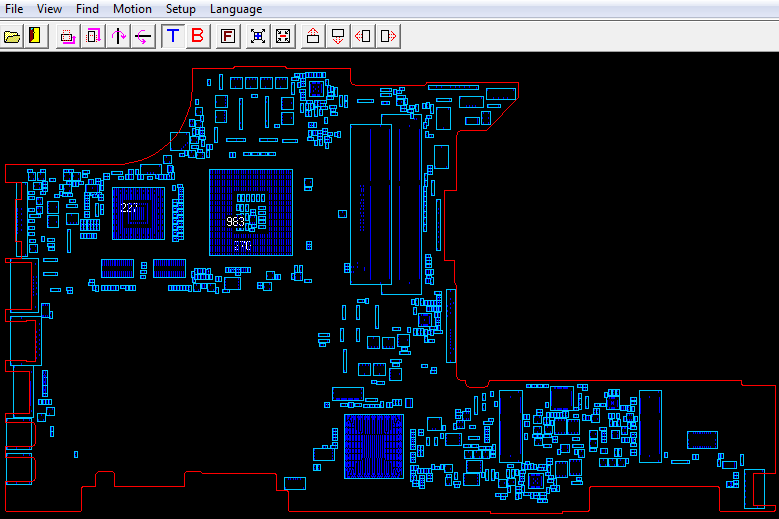

Lenovo K46 (Discrete) boardview:
