HP Mini 210-2003er/110-3601er/Mini 210 series schematic, Edwards

The motherboard schematic diagram for HP Mini 210-2003e, HP Mini 110-3601er netbook, Foxconn Edwards1.1 and Nano1.0 UMA.
CPU: Intel Pineview-M (N455 , N475 , N550) (Pine Trail – M platform)
Chipset: Intel Tiger Point
OEM: Foxconn eMS Inc.
Document Number: Edwards
Format: PDF
Total Pages: 40
File size: 1.12MB
Sale Price: 10.5$

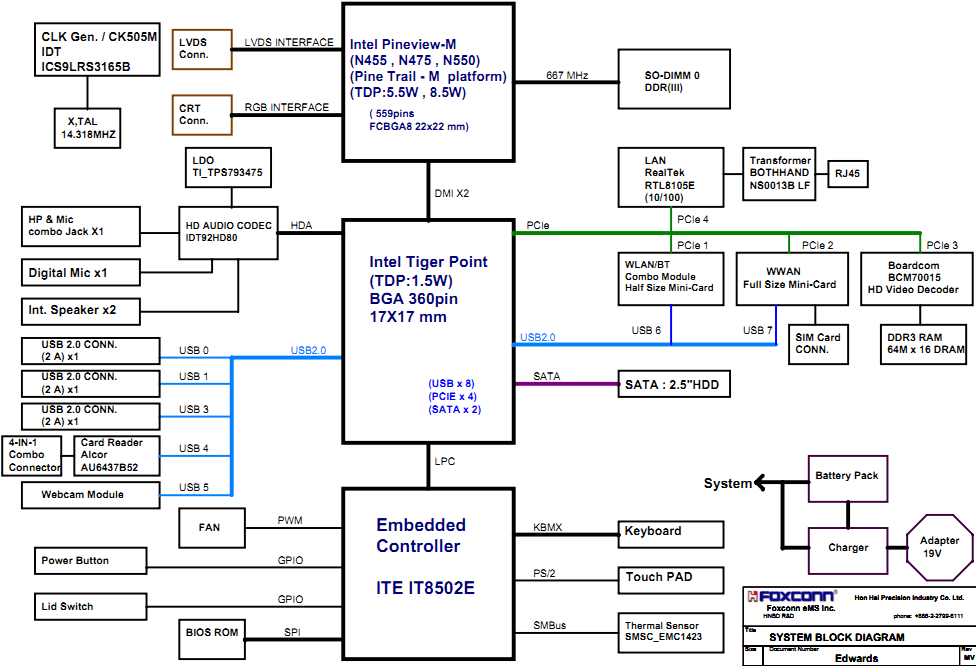

HP Mini 210 Block Diagram:
HP Mini 210 Block Diagram

HP Mini 210 Block Diagram
