The motherboard schematic diagram(pdf) for SONY Vaio VGN-FE550,VGN-FE550G,VGN-FE570,VGN-FE590,VGN-FE590P, MBX-149 MS10.
CPU: Yonah
North Bridge: Calistoga 945GM/PM 955XM
South Bridge: ICH7-M
OEM: FOXCONN
Project Code & Schematics subject: MS10 Main Board
Document Number: MS10-1-01(MBX-149)
Format: PDF
Total Pages: 75
File size: 1.72MB
Language: English
Sale Price: 15.5$

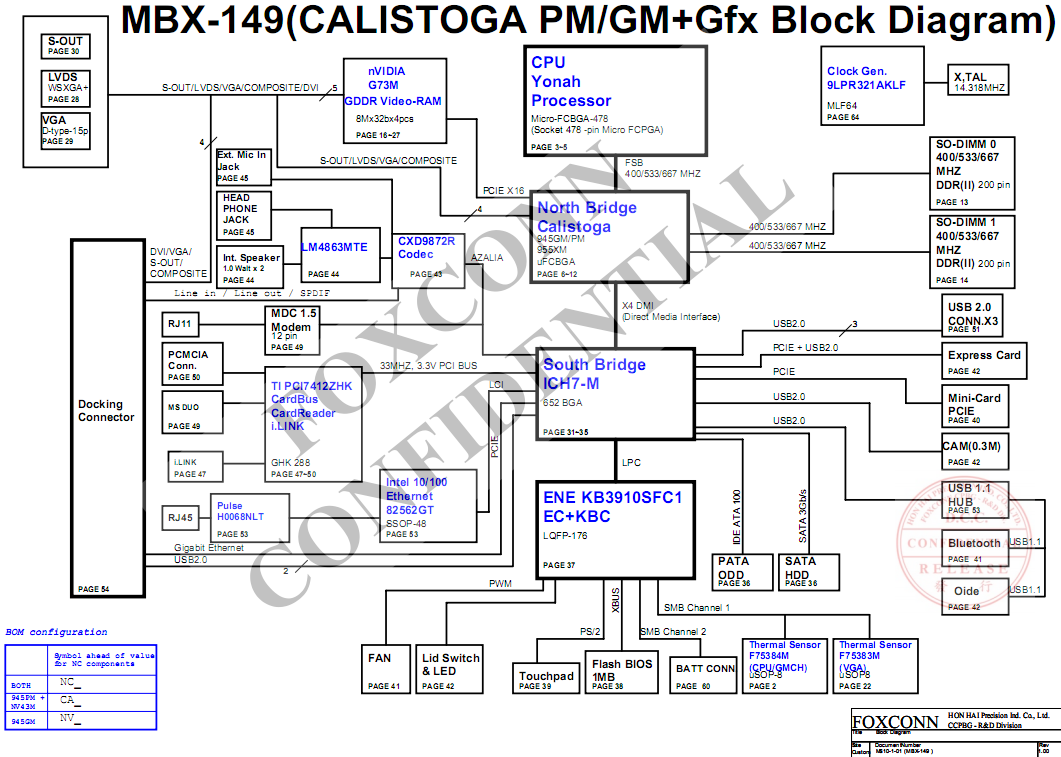

Sony Vaio VGN-FE5 SERIES Block Diagram(MBX-149 MS10):
SONY VGN-FE5 Block Diagram
