acer Aspire 4320 4720 4720G 4720Z schematic diagram(Z01)

The document is PDF format, include:

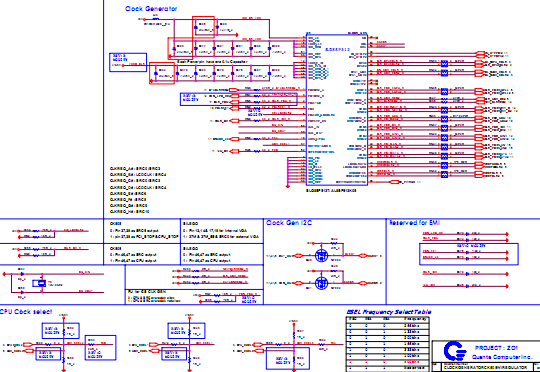

The motherbord schematic diagram(Z01 MotherBoard) for acer Aspire 4320 Series, acer Aspire 4720 Series, acer Aspire 4720G Series, acer Aspire 4720Z Series notebook/laptop, Model Z01.
CUP: Merom CPU
North Bridge: Crestline 965GM/965PM
South Bridge: ICH8M
OEM: QUANTA COMPUTER
PROJECT: ZO1
Format: PDF
Total Pages: 26
File size: 873KB
Language: English
Sale Price: 15.5$

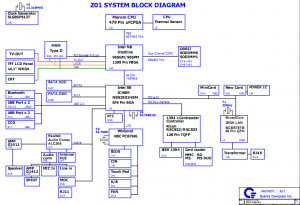

acer Aspire 4320 4720 4720G 4720Z Block Diagram(Z01):
