acer Aspire 4252/4552/4552G schematic, ZQA UMA

The motherboard schematic for Acer Aspire 4252, Acer Aspire 4552, Acer Aspire 4552G laptop/notebook, Quanta ZQA.
CPU: AMD Champlain S1G4。
North Bridge: RS880M + ATI Park XT 128-bit M2 Pkg
South Bridge: SB820M
OEM: Quanta Computer Inc.
PROJECT: ZQA
Rev: 1A
Format: PDF
Total Pages: 48
File size: 1.29MB
Sale Price: 11.5$

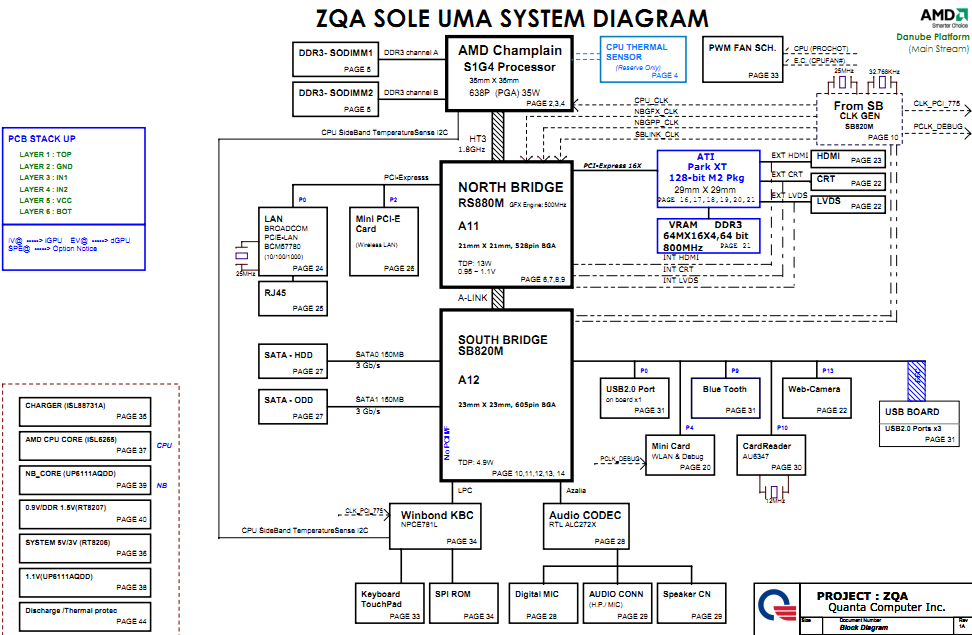

acer Aspire 4252/4552 Block Diagram:
