DELL Inspiron 1420 schematic diagram(Discrete)

The motherboard schematic diagram for DELL Inspiron 1440(Discrete) laptop/notebook. Lanai Discrete VGA nVidia NB8M Schematics Document, uFCPGA Mobile Merom, Intel Crestline-PM + ICH8M.
CUP: Merom
North Bridge: Crestline
South Bridge: ICH8-M
nVIDIA G86M
OEM: ASUS
MODEL NAME: Elsa
PROJECT: Lanai
Format: PDF
Total Pages: 68 (These pages are blank: 29-30)
Language: English
Sale Price: 16.5$

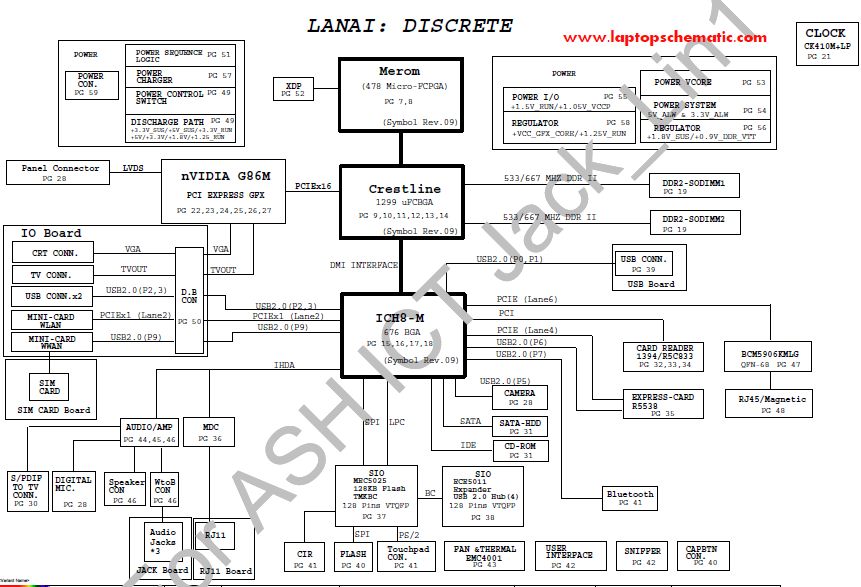

DELL Inspiron 1420(Discrete) Block Diagram:

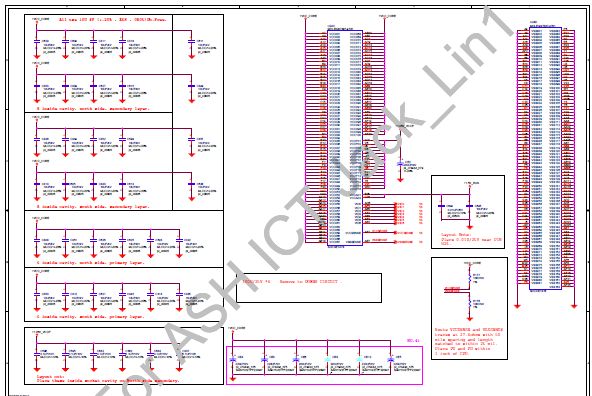

DELL Inspiron 1420(Discrete) schematics:
