Dell Inspiron 1750 Schematic & Boardview 09206 DIS 09210 UMA

Schematic (*.pdf) and Boardview (*.brd) for Dell Inspiron 1750 (UMA) , Dell Inspiron 1750 (Discrete) laptop, 09206 Motherboard, 09210 Motherboard.

Document Number: DR2 17″ UMA, Roberts DIS 512M

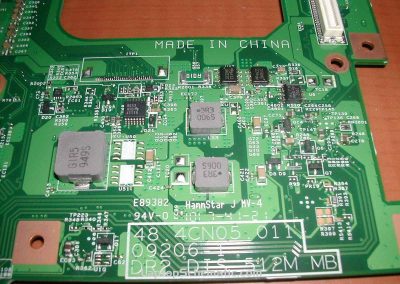

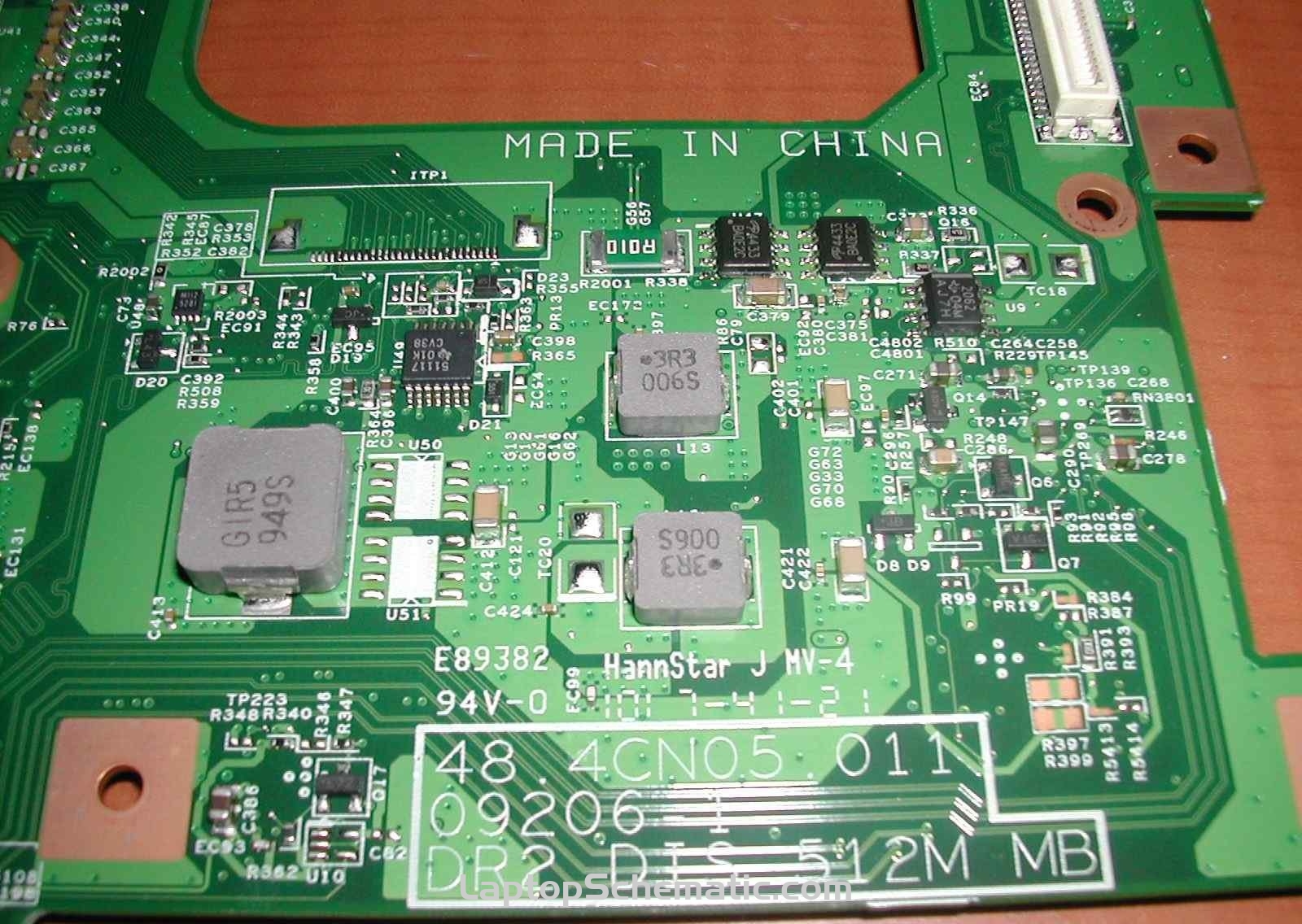

PCB P/N : 48.4CN06.0SB, 48.4CN06.021, 48.4CN06.011, 48.4CN05.011
Revision: 09210-SB, 09210-2, 09210-1, 09206-1

CPU: Intel Penryn
GFX: UMA / DIS
OEM: Wistron DR2
Format: PDF, BRD
Sale Price: 12.5$

Original document, no irrelevant watermark.

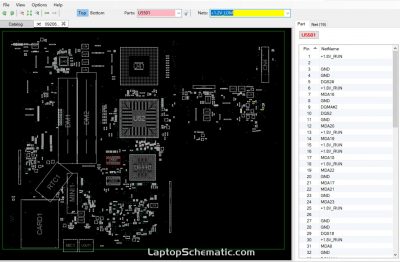

Boardview Software

• Open Boardview(.brd) file with BoardViewer (Download)

File list:

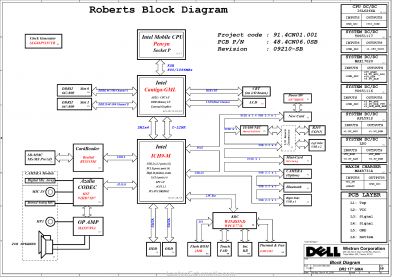

DR2_UMA_09210-SB.pdf

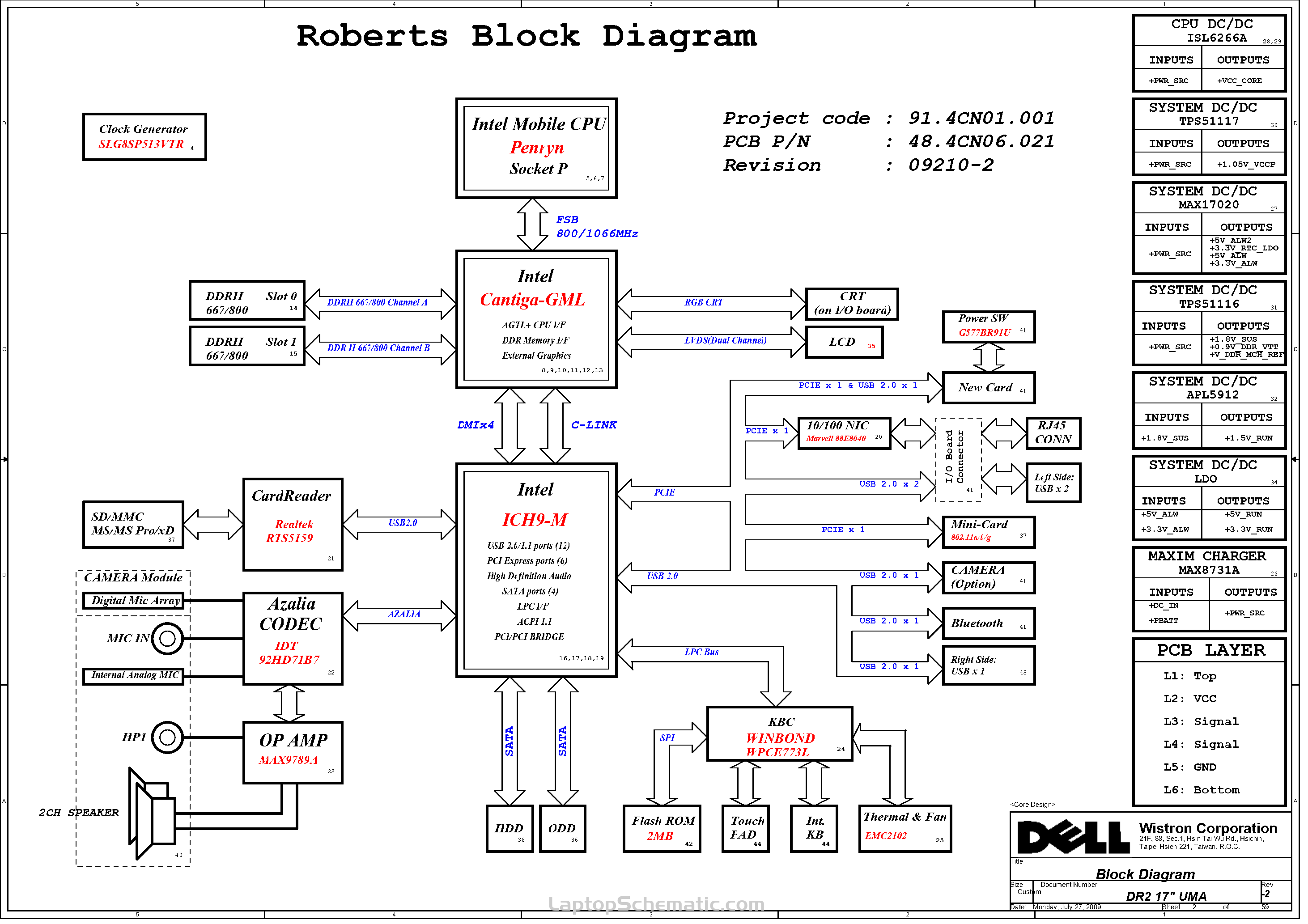

DR2_UMA_09210-2.pdf

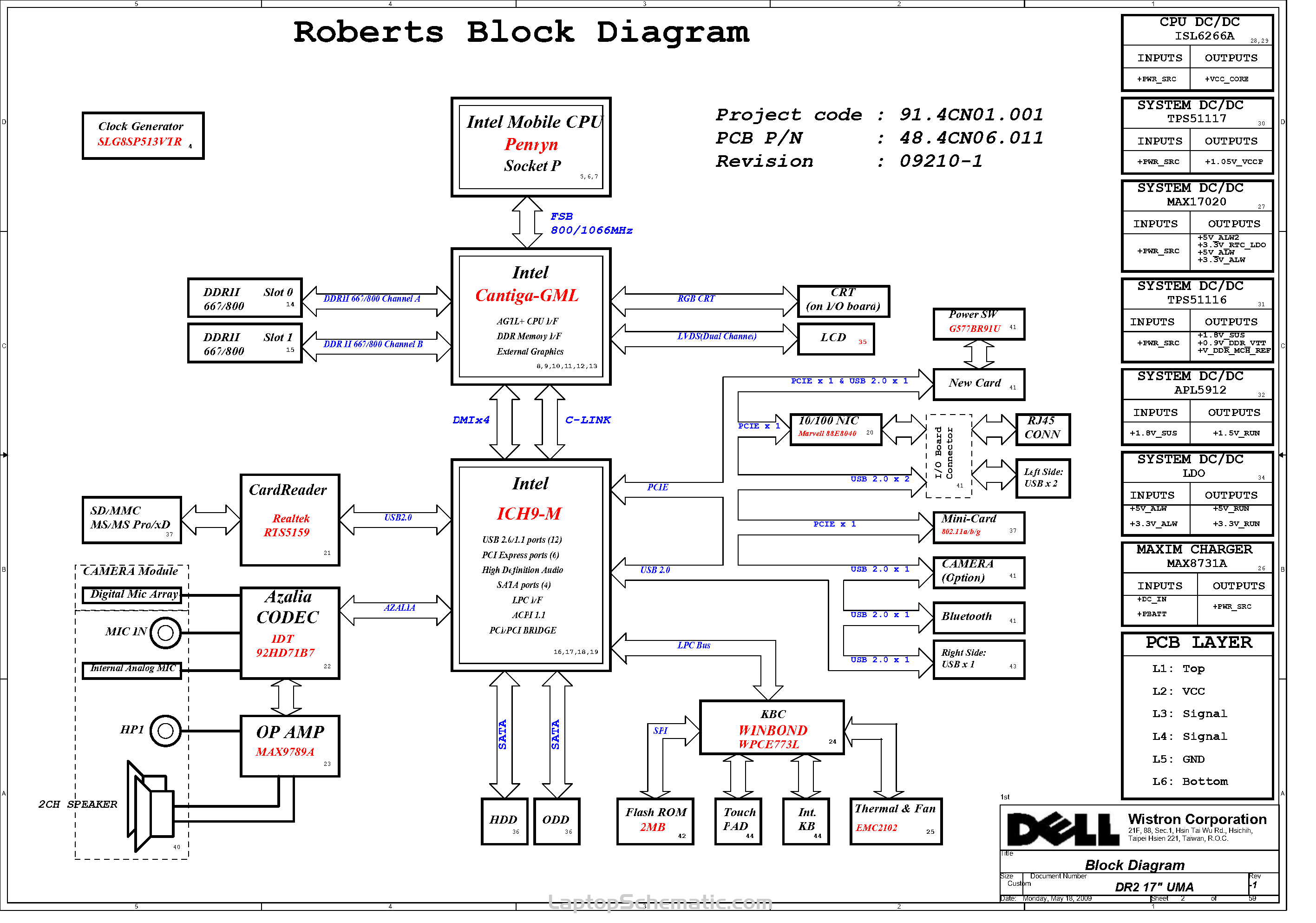

DR2_UMA_09210-1.pdf

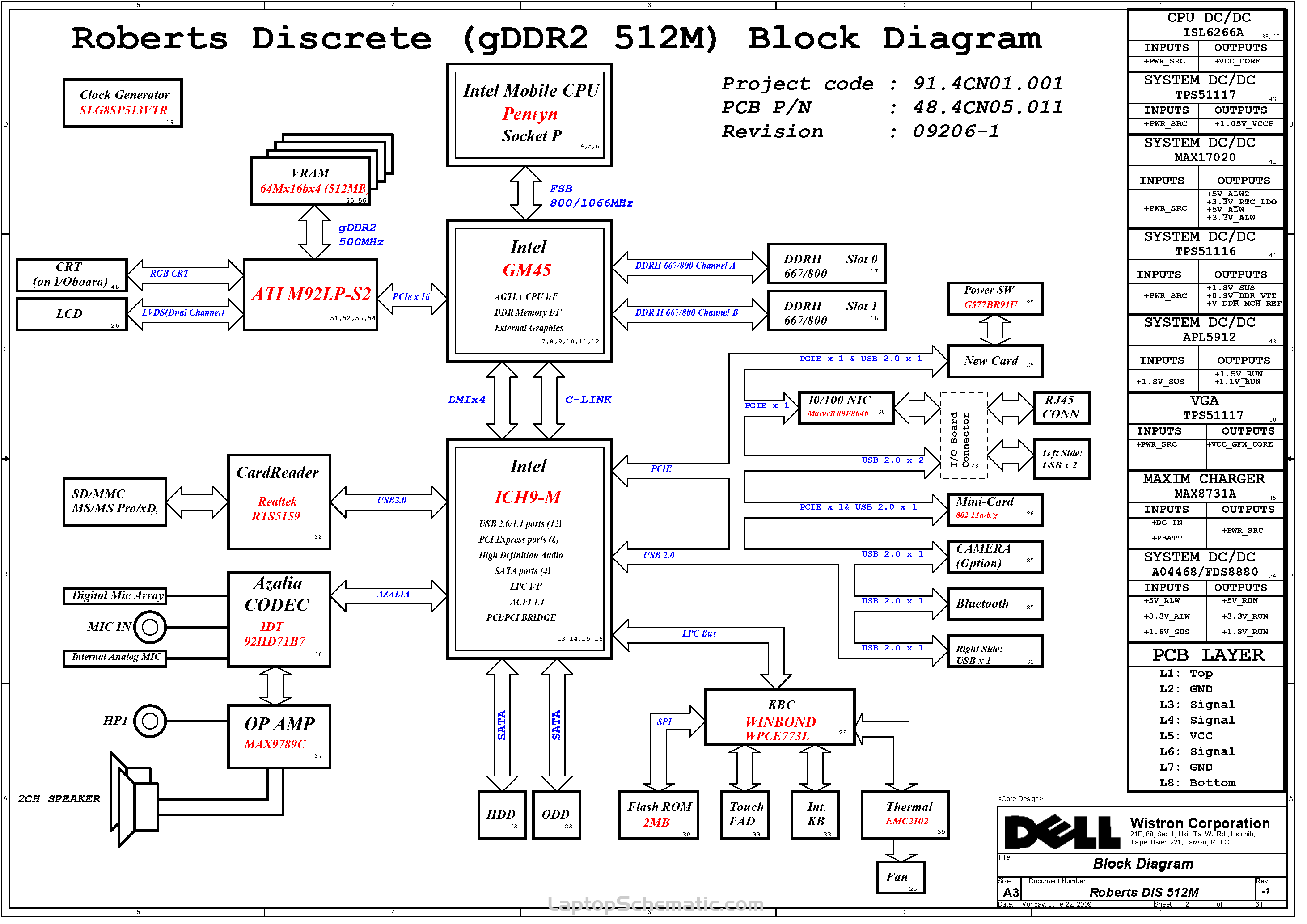

DR2_DIS_09206-1.pdf
09210-sb.brd
09210-2.brd
09210-1.brd
09206-1.brd
