Dell Inspiron M4010 schematic, Ansenal DJ1 AMD UMA

The motherboard schematic for Dell Inspiron M4010 (AMD UMA) laptop/notebook, Wistron Ansenal DJ1 AMD UMA, Ansenal DJ1 UMA Schematics Document, AMD Danube CPU S1G4 RS880M + SB820M.
CPU: AMD S1G4
North Bridge: AMD RS880M
South Bridge: AMD SB820M
OEM: Wistron Corporation
Project code : 91.4EK01.001
PCB P/N : 09940
Revision : SC
Document Number: Ansenal DJ1 AMD UMA
Revision : A00
Format: PDF
Total Pages: 90
Sale Price: 11.5$

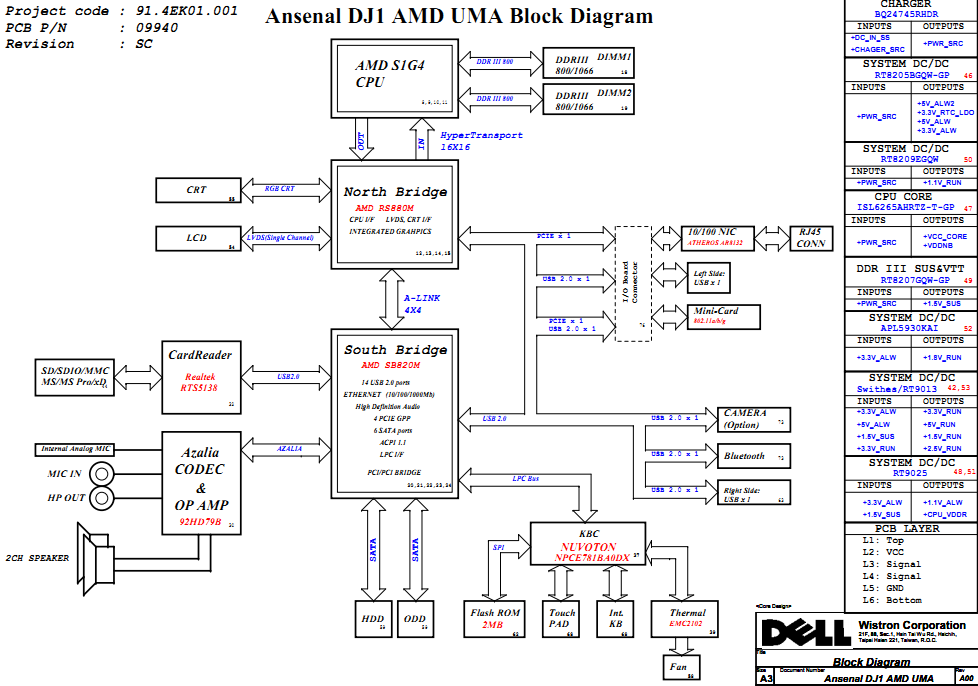

Dell Inspiron M4010 Block Diagram:

Dell Inspiron M4010 Block Diagram

Dell Inspiron M4010 Block Diagram
