Dell Vostro 3450, Dell Insprion 14R (N4110) schematic,V02A

The motherboard schematic for Dell Vostro 3450 (Discrete), Dell Insprion 14R (N4110) laptop/notebook, Quanta V02A/R01A DIS Mainboard.
CPU: Sandy Bridge 35W
Discrete VGA ATI Whistler LP (128bit)/Seymour XT (64bit)/Robson XT(64bit)
Chipset: Mobile Intel Series 6 Chipset PCH Couger Point HM67
OEM: Quanta Computer Inc.
Document Number: V02A/RO1A
Rev: 1A
Format: PDF
Total Pages: 61
File size: 1.51MB
Sale Price: 13.5$ (include IO BOARD)

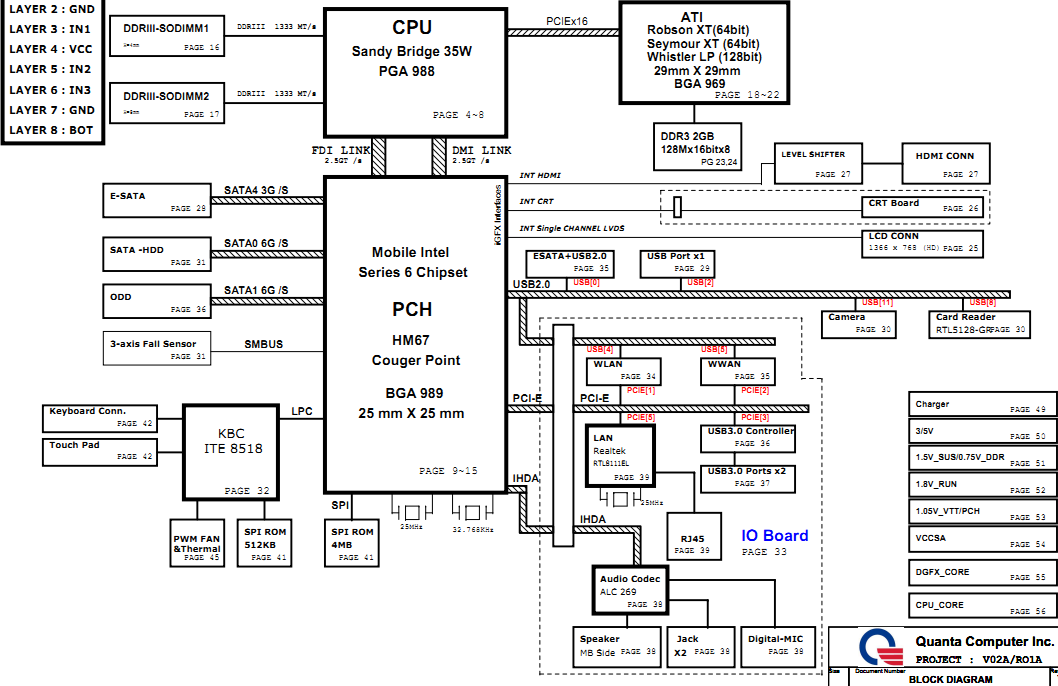

Dell Vostro 3450, Insprion 14R (N4110) Block Diagram:
