Fujitsu Amilo Pi 1505/Hasee F420/TCL K42/Haier A61 Schematics

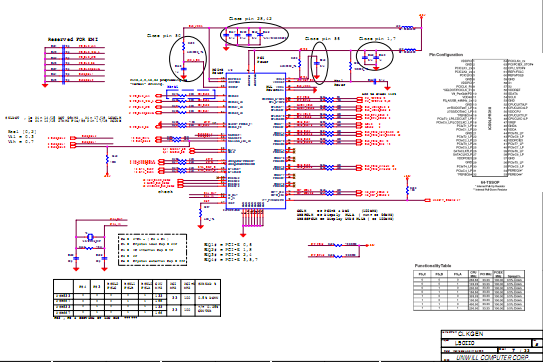

The motherboard schematic diagram (UNIWILL L50II0 Schematics Rev:B) for Fujitsu Siemens Amilo Pi 1505, Hasee F420, TCL K42, Haier A61 laptop/notebook. 37GL50200-B0 PCB MAIN BD FOR L50II0 REV:B, 82GL50200-B0 M/B ASSY FOR L50II0.
CPU: Yonah/Merom Dual/Singal
North Bridge: INTEL 945GM
South Bridge: INTEL ICH7M
OEM: UNIWILL COMPUTER CORP.
Project: L50II0
Format: PDF
Total Pages: 33
Total Files size: 915KB
Language: English
Sale Price: 9.5$

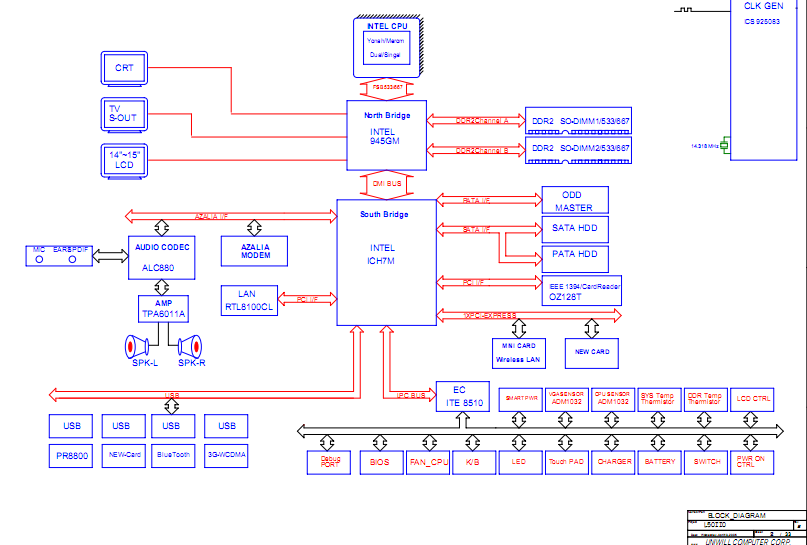

UNIWILL L50II0 Block Diagram:
