Fujitsu Esprimo Mobile U9215 U9210 schematic

The schematic diagram(pdf) for Fujitsu Esprimo Mobile U9215, Fujitsu Esprimo Mobile U9210 laptop/notebook.
CPU : Intel Penryn
Clock Generator :ICS9LPRS397AGLF
Chipset : Intel Cantiga GM/GML // ICH9M/E
Video: UMA
Thermal Sensor :EMC1402
Audio :ALC262,G1412RC1U,G1432Q5U
KBC(Embeded Controller),SIO :ITE8512F,IT8305E
LAN Controller :82567LM/LF
Card Bus, etc. :GL827,OZ77CR6

MAX8770GTL+
MAX8724ETI
G680LT1
TPS51120RHB
TPS51117RGYR
TPS51100
SC472BMLTRT
TPS51117RGYR
G961-18ADJ

* SYSTEM POWER ON/OFF SEQUENCE diagrams are included

Total Pages :45
File type : PDF
Language : English
Sale Price: 10.5$

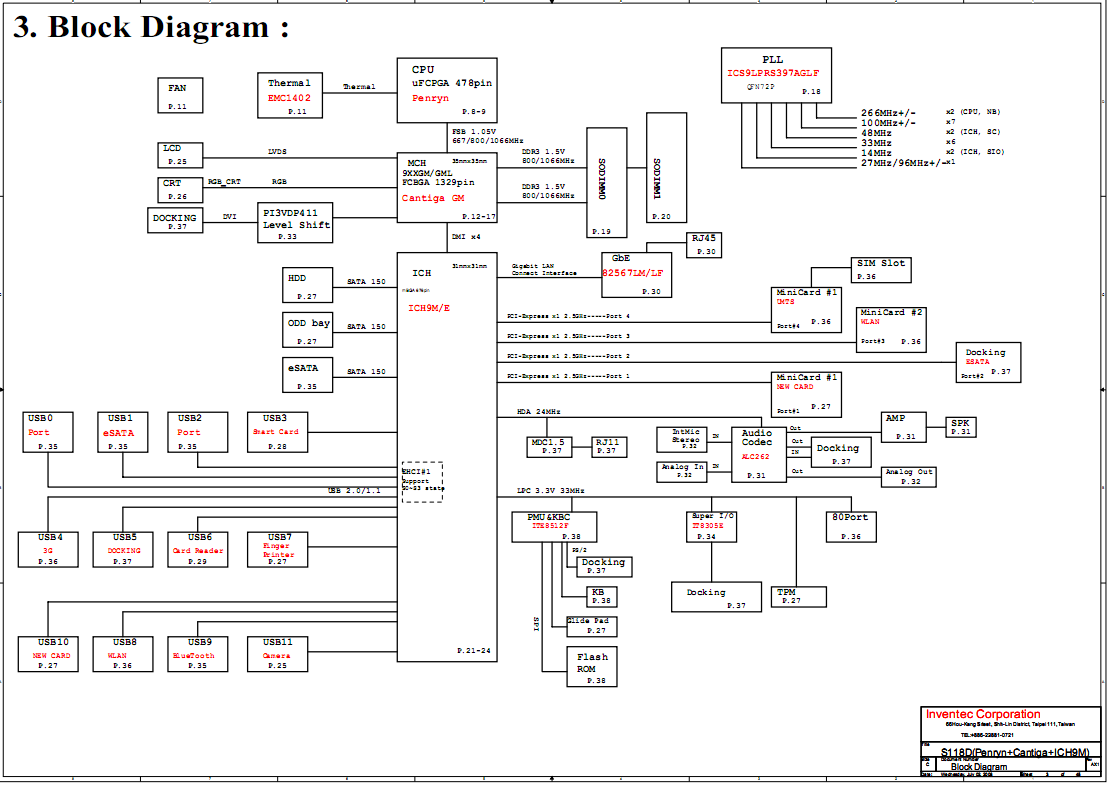

Fujitsu Esprimo Mobile U9215 Block Diagram:

Schematic Page Description:
