Fujitsu Siemens Amilo Li 1705 schematic

The schematic diagram for Fujitsu Siemens Amilo Li 1705, FIC VA250.
Board name : Mother Board
Schematic Project: VA250
Version: 0.3
Current Date : Nov 11, 2006
CPU: Intel Yonah Celeron 533/667MHz
North Bridge: VIA VN896
South Bridge: VT8237A
OEM: First International Computer,Inc
Title: VA250 Rev: 0.3
Format: PDF
Total Pages: 56
Sale Price: 7.5$

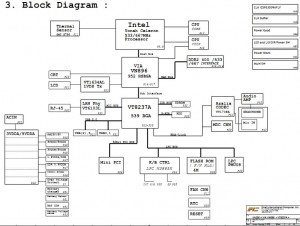

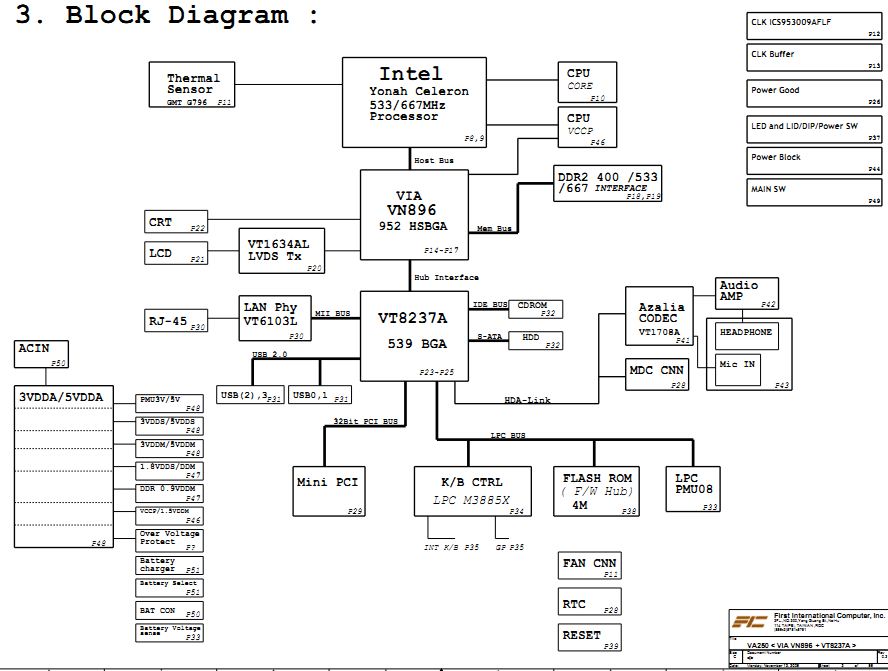

Fujitsu Siemens Amilo Li 1705 Block Diagram:
