Gateway NV52 Series schematic & boardview, SJV50-PU

The motherboard schematic and boardview(.brd file) for Gateway NV52 Series Mainboard, Wistron SJV50-PU, Gateway SJV50PU.
CPU: AMD Giffin S1G2 (35W)
North Bridge: AMD RS780M + GPU ON BOARD M92-M2
South Bridge: AMD SB700
OEM: Wistron Corporation
Project code: 91.4BX01.001
PCB P/N: 48.4BX04.011
REVISION: 08260-1
Document Number: SJV50-PU
Rev: -1
Format: PDF
Total Pages: 59
File size: 782KB
Sale Price: 12.5$(include boardview)

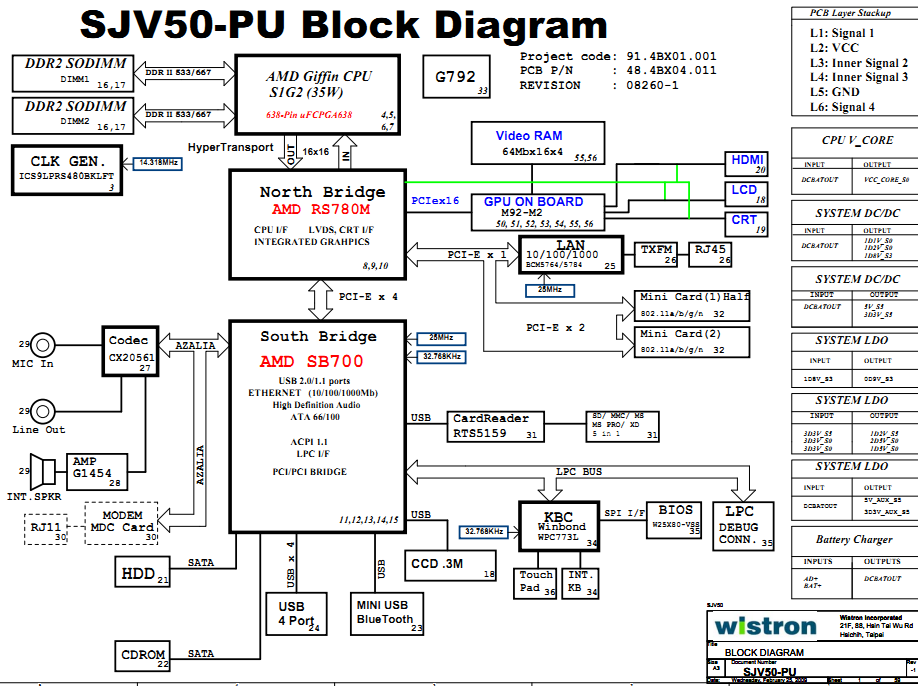

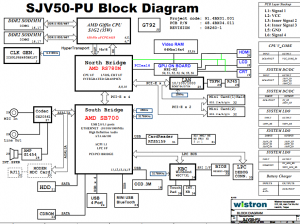

Gateway NV52 (SJV50PU) Block Diagram:

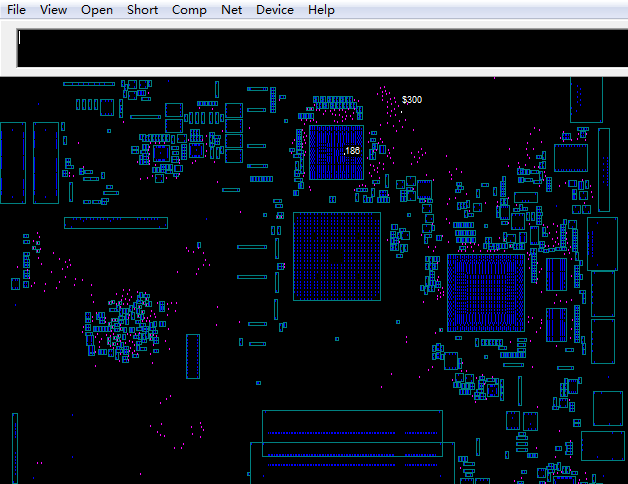

Gateway NV52 (SJV50PU) boardview:
