HP 2533T schematic, JBU00 LA-3941P

The motherboard schematic for HP Compaq 2533T, JBU00 Mainboard Compal LA-3941P
CPU: VIA C7M 1G
North Bridge: VN 896
South Bridge: VT 8237S
OEM: Compal Electronics
File Name : LA-3941P
Document Number: LA-3941P
Format: PDF
include:
La-3941p_r1_0403.pdf (1.33 MB)
LA-3941P_R04_1129.PDF (1.34 MB)
LS-3941P R02-20070818_Switch Board.pdf (58.37 KB)
LS-3942p r02-20070813_USB BOARD.pdf (41.97 KB)
LS-3943p r02-20070813_LED BOARD.pdf (44.88 KB)
LS-3944p r02-20070812_LID SW BOARD.pdf (39.45 KB)
LS-3944P R04-20080121_LID SW BOARD.pdf (40.81 KB)
Sale Price: 8.5$

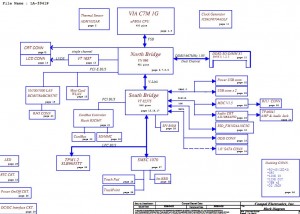

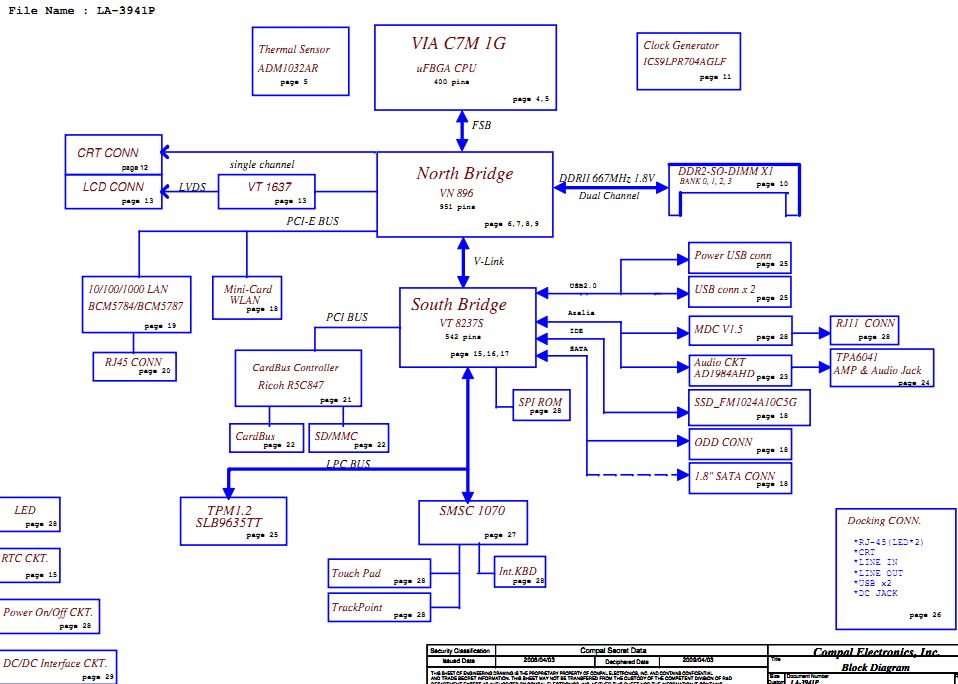

HP Compaq 2533T Block Diagram:
