HP Envy 17/17-2000er schematic & boardview, Quanta SP9, DA0SP9MB8D0

The motherboard schematic and boardview for HP ENVY 17, HP Envy 17-2000er laptop/notebook, Quanta SP9 Mainboard, DA0SP9MB8D0.
CPU: Intel Sandy 4 Core CPU 45Watt/35Watt
Discrete VGA ATI GPU Granville-LP
Chipset: Intel Platform Controller Hub
OEM: Quanta Computer Inc.
PROJECT: SP9 (Huron River)
Rev: 1A
Format: PDF
Total Pages: 46
Sale Price: 12.5$(include boardview)

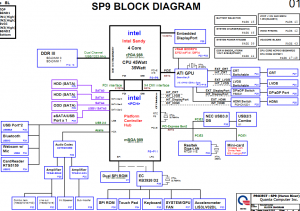

HP Envy 17 Block Diagram:

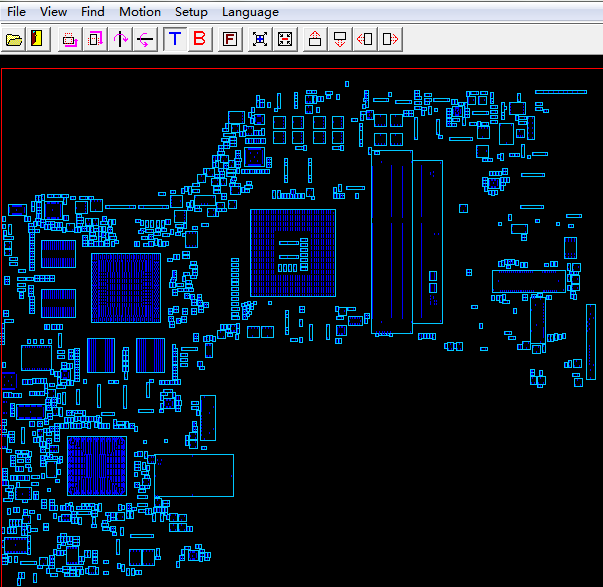

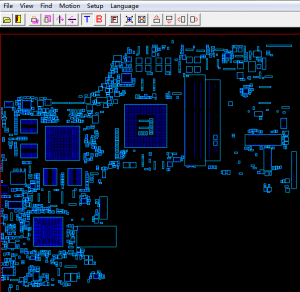

HP Envy 17 boardview:
