HP EliteBook 6440b/6445b/6540b/6545b schematic, KML00 LA-4961P

The motherboard schematic for HP Elitebook 6440B, HP Elitebook 6445B, HP Elitebook 6540B, HP Elitebook 6545B laptop/notebook, TAG UMA Motherboard, Compal LA-4892P, Mobile AMD S1G3 CPU with ATI RS880M(NB) & SB710(SB) core logic.
CPU: Caspian AMD S1G3
North Bridge: ATI RS880M
South Bridge: ATI SB710
OEM: Compal Electronics
Document Number: LA-4961P
Rev: 1.0
Format: PDF
Total Pages: 54
File size: 1.20MB
Sale Price: 11$

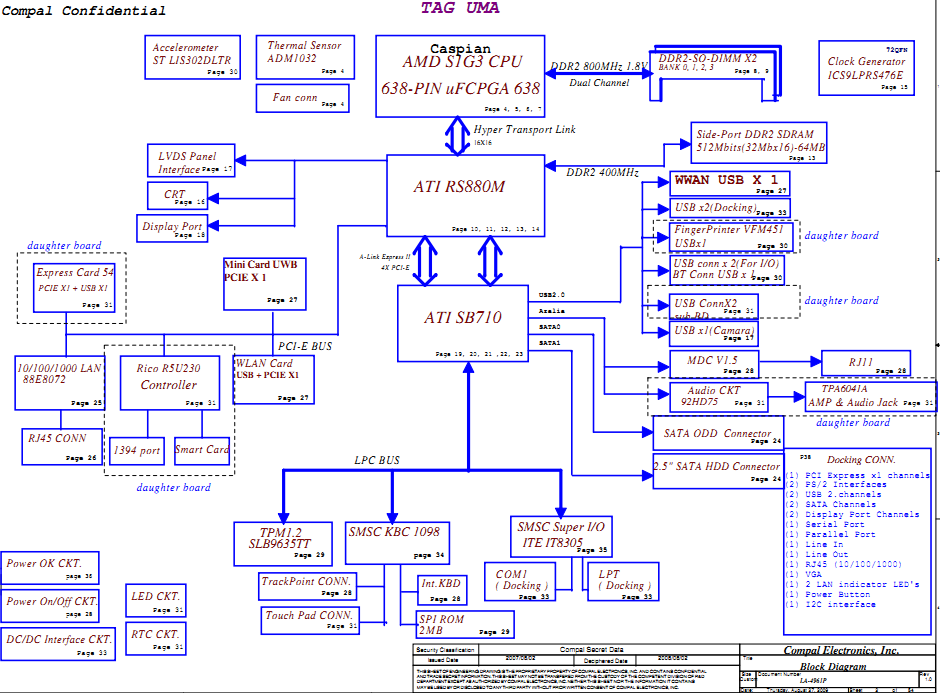

HP 6445B Block Diagram:
