HP Omen 17-CB 17T-CB Compal FPC54 LA-H481P LA-H482P FPC72 LA-H491P LA-H492P Schematic

HP Schematics

The motherboard schematic for HP Omen 17-CB, HP Omen 17T-CB laptop/notebook, Compal FPC72 LA-H492P OMEN 17.3″ Santorini.
15.6″: FPC54 LA-H481PR(N17)
LA-H482P(N18)
17″: FPC72 LA-H491P(N17)
FPC72 LA-H492P(N18)
Rev: 0.1 2018/09/28

CPU: INTEL Coffee Lake- H 6C+GT2
NVIDIA N18E-G3
DDR4 x 2133MHz 1.2V
Format: PDF
Searchable PDF file, No Watermark
Total Sheet: 100
File size: 3.83 MB
Sale Price: 12.5$

Note:
LA-F841P and LA-H492P, these two motherboard models are basically the same and can be repaired against.

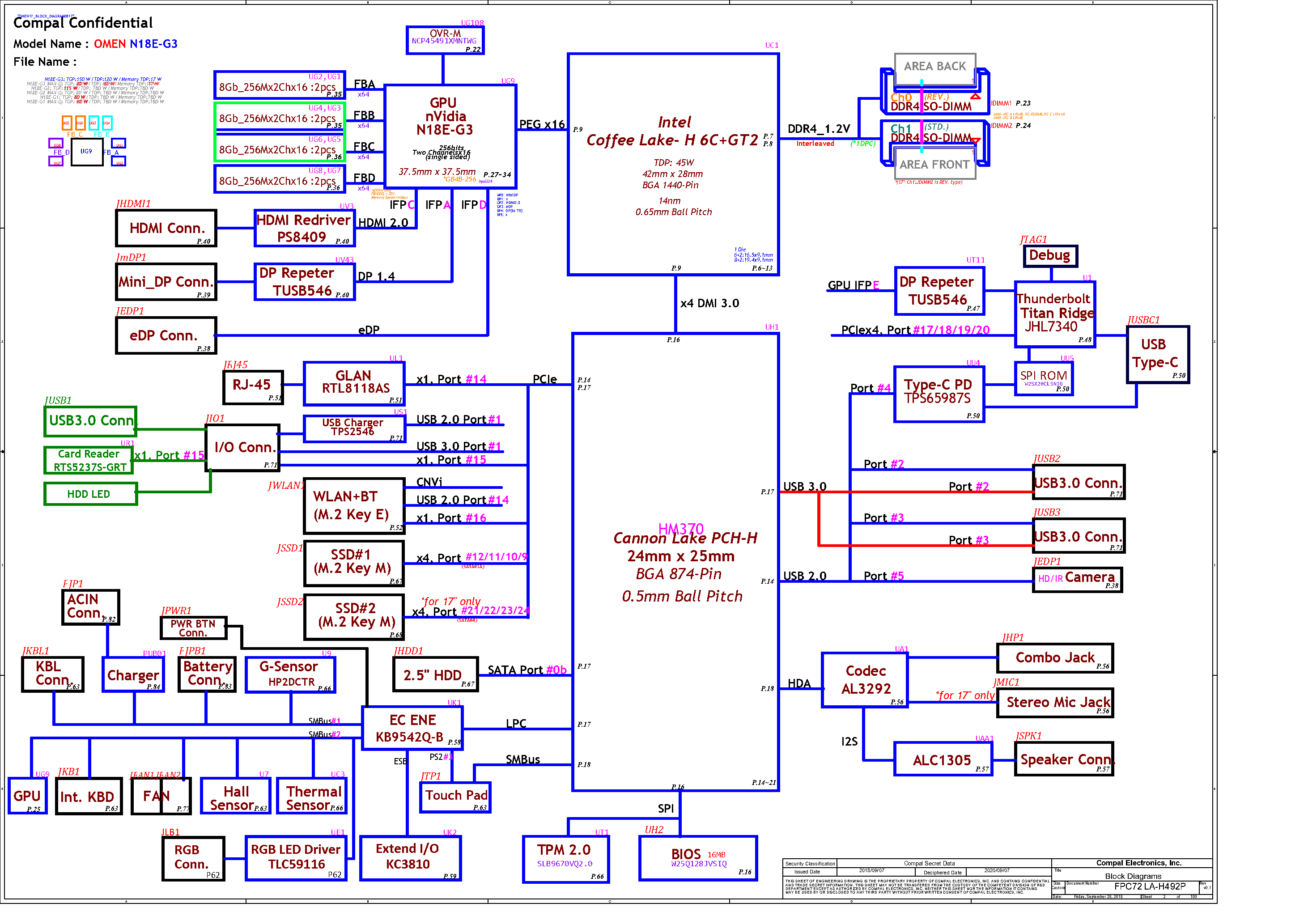

HP Omen 17-CB 17T-CB Schematic LA-H492P Block Diagram:
