Lenovo ThinkPad Yoga 15 ZIUS1 LA-B591P Schematic

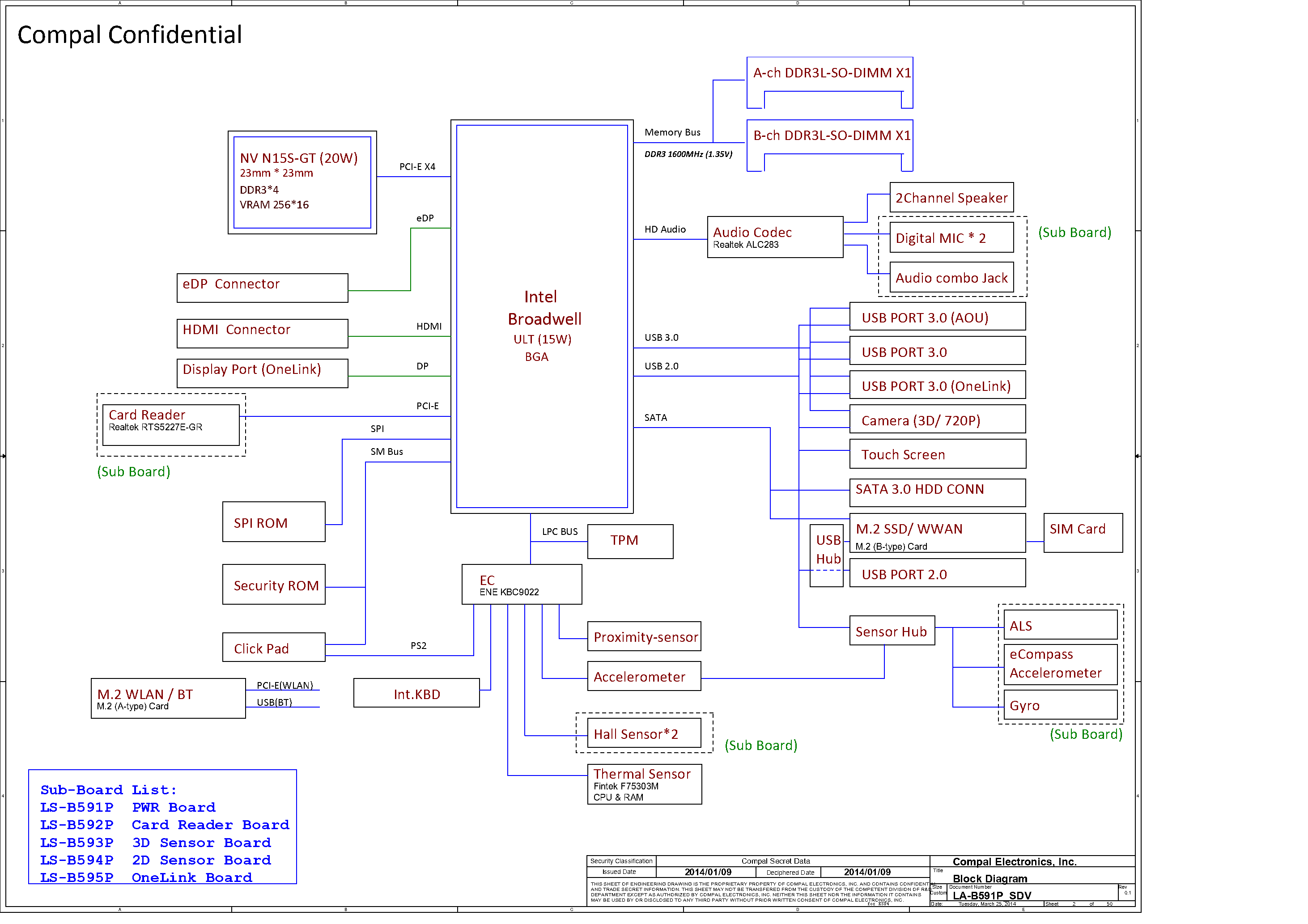

The Schematic (*.PDF) for Lenovo ThinkPad Yoga 15 laptop, Compal ZIUS1 LA-B591P Motherboard. Intel Crescent Bay Broadwell U Processor with DDR3L + NVIDA N15S‐GT GPU.

Model Name: ZIUS1(Lenovo), ZIUS2(NEC)
File Name: LA‐B591P
CPU: Intel Crescent Bay Broadwell-U with DDR3L
GPU: UMA or DIS (NVIDA N15S‐GT)
EC: ENE KBC9022
File type: PDF (Searchable)
Language: English

Also included :
— Power Sequence Timing diagram (AC and DC modes)

Original document, no irrelevant watermark.

Sale Price: 12.5$
