Lenovo B460/V460 schematic, LA46-UMA

The motherboard schematic for Lenovo B460, Lenovo V460 laptop/notebook, Wiston LA46 UMA.
CPU: Auburndale (Dual Core)
Chipset: Intel PCH HM55
OEM: Wistron Corporation
LA46-UMA-1_0104
Project Code: 91.4GV01.001
PCB(Raw Card): 09922-1
Document Number: LA46-UMA
Revision: 1
Format: PDF
Total Pages: 48
File size: 1.14MB
Sale Price: 11.5$

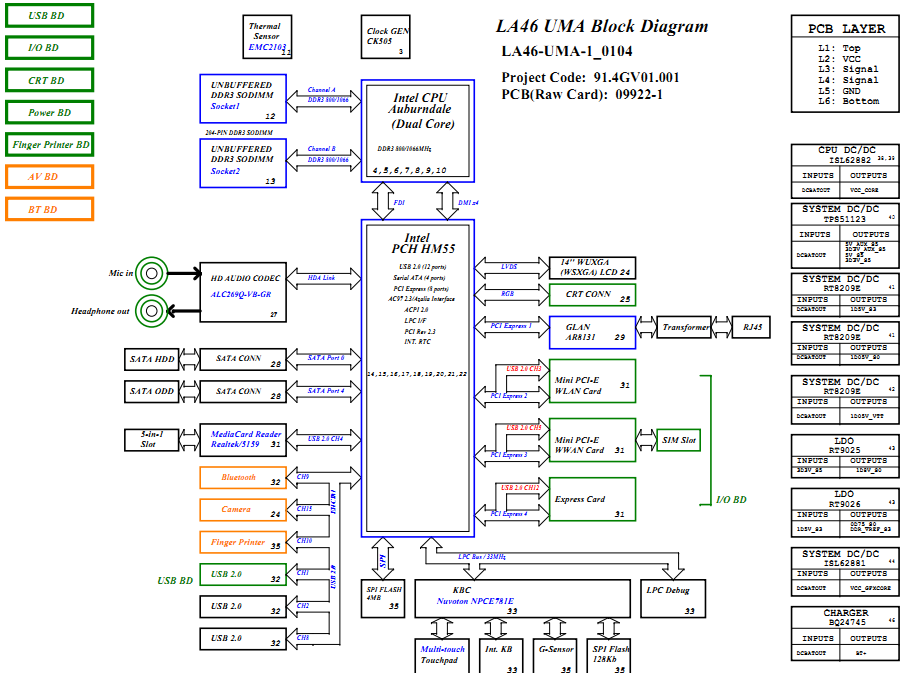

Lenovo B460 V460 Block Diagram:
