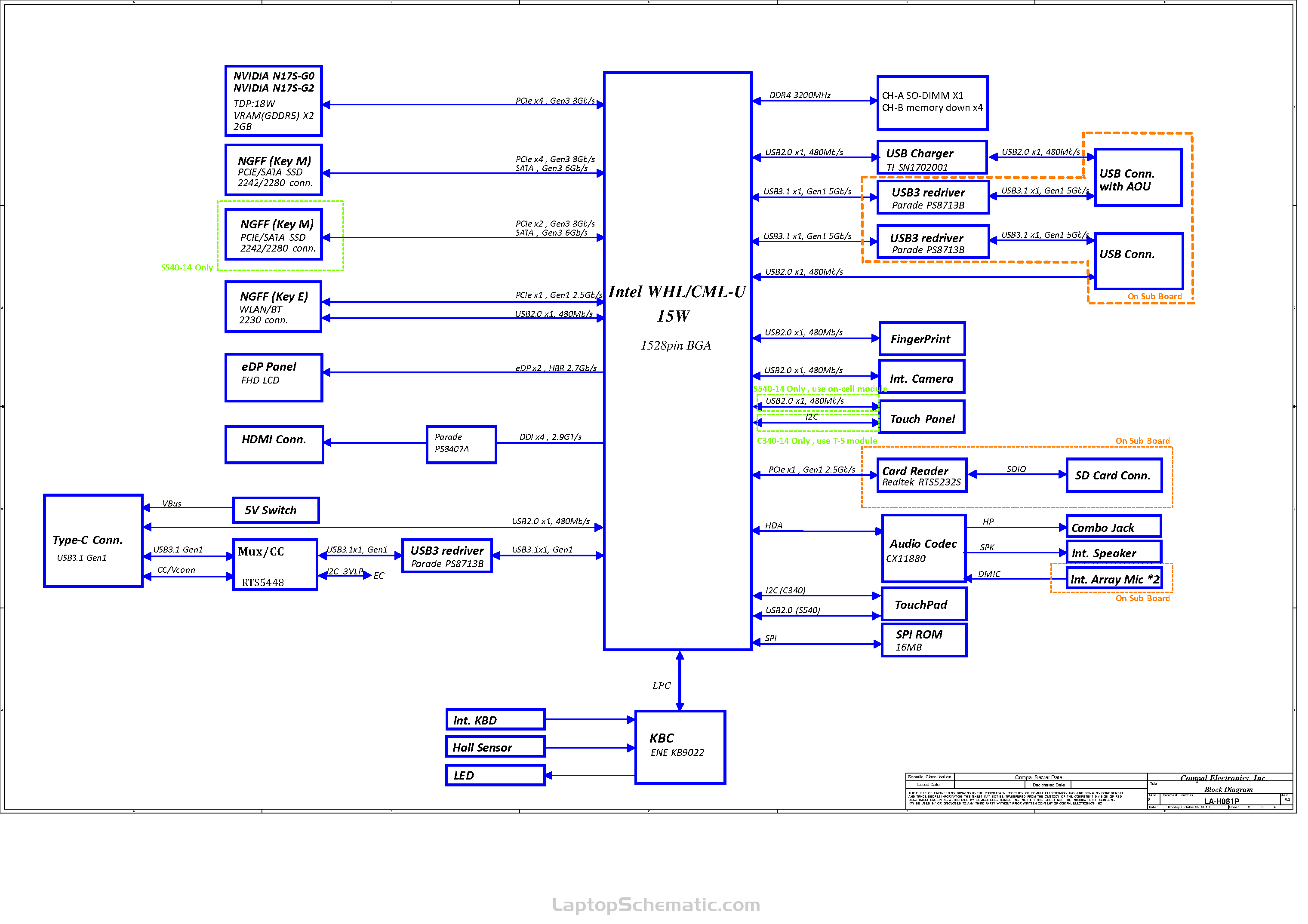

Lenovo FLEX-14IWL, IdeaPad C340-14IWL, S540-14IWL Schematic EL4C1/EL451 LA-H081P

Lenovo Schematics

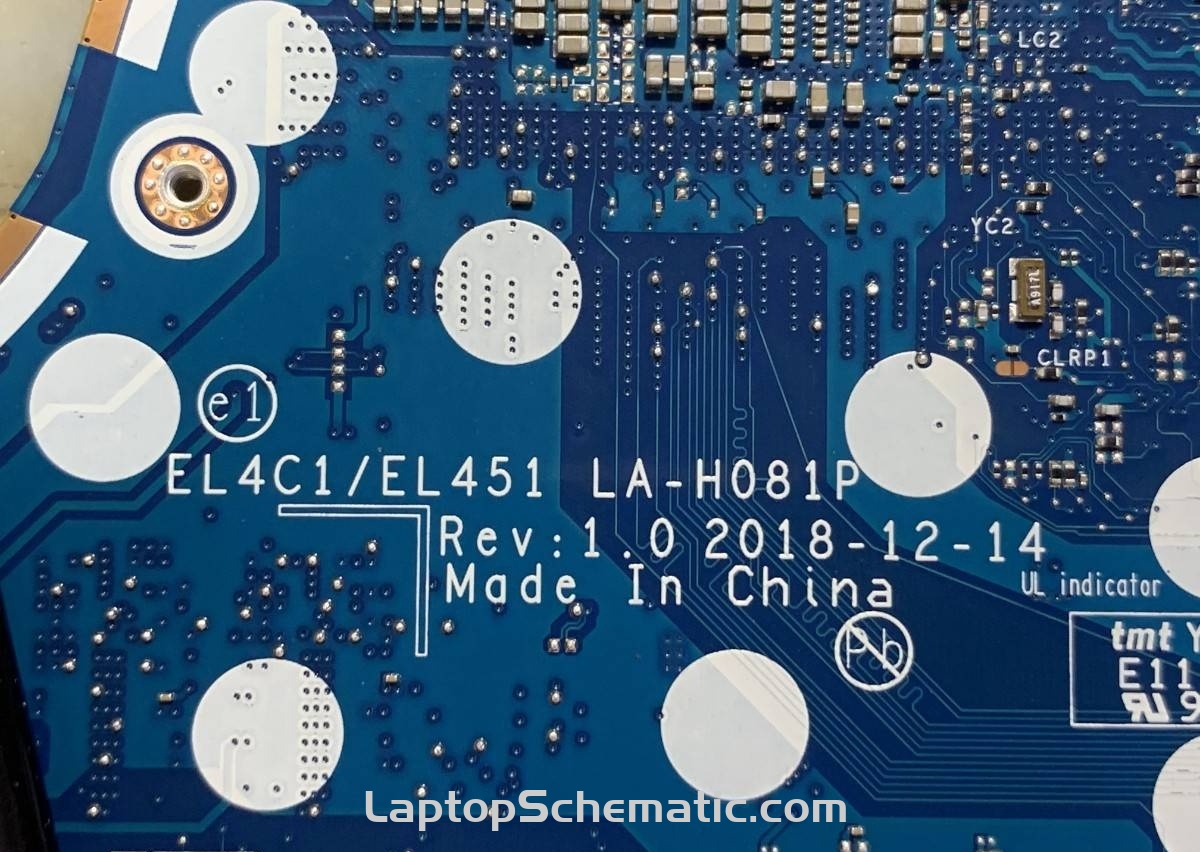

The Schematic (*.pdf) for Lenovo FLEX-14IWL, IdeaPad C340-14IWL, IdeaPad S540-14IWL, IdeaPad S540-14IWL Touch laptop, EL4C1/EL451 LA-H081P Motherboard.
CPU: Intel WHL/CML-U + DDR4
GPU: Integrated (UMA) or NVIDIA N17S-G0 / N17S-G2 (DIS)
EC: KB9022
Format：PDF (Searchable, No watermark of website)
Language: English
Pages: 53
Sale Price: 12.5$

Original document, no irrelevant watermark.
