Lenovo B590 Schematic Wistron LB59A 12209-1 48.4XB01.011

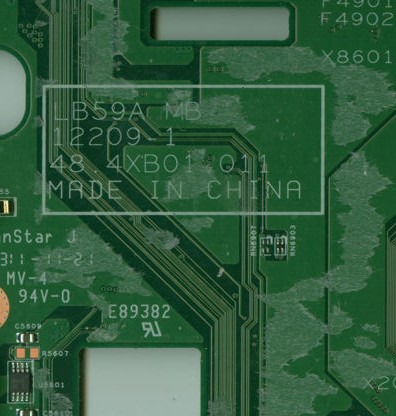

The Motherboard Schematic(.pdf) and Motherboard HD Photos for Lenovo B590 laptop, Wistron LB59A 12209-1 48.4XB01.011 Motherboard.
CPU: Intel IVY Bridge
PCH: Intel Panther Point HM70/HM77
GPU: (UMA) / nVidia N13P-GS or N13M-GE1 (DIS)
EC: NPCE885G
Format: PDF (Searchable)
Language: English
Original document, no irrelevant watermark.
Sale Price: 9.5$ (include Motherboard Photos)

Also included:
— System Power ON/OFF Sequence Timing Diagram

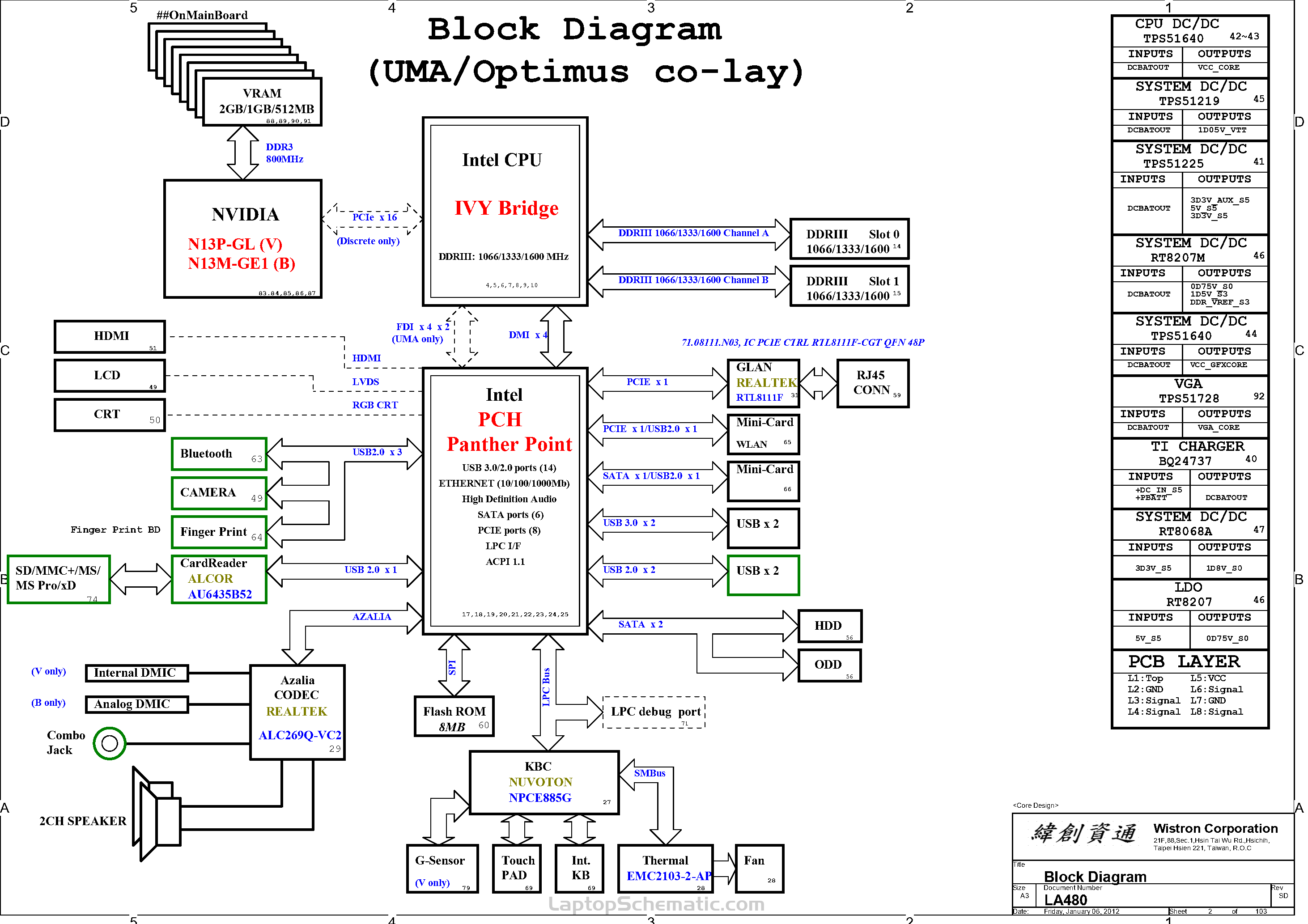

— Power Block Diagram
— PCH SMBus Block Diagram
— KBC SMBus Block Diagram
— Thermal Block Diagram
— Audio Block Diagram
